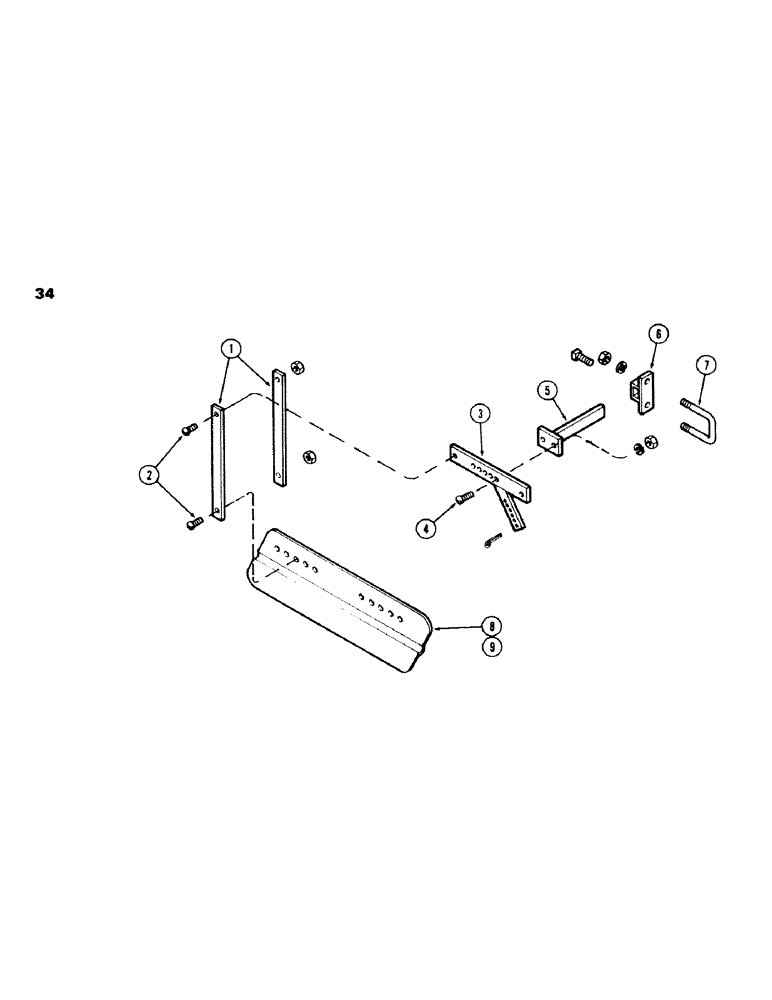

Запчасти Case IH 100-SERIES (34) - SLIDING SHIELD, SN1605900 AND UP

1

T55242

LINK

8шт.

2

115-418

BOLT,Hex, 1/2" - 13 x 9", Gr 5

SCREW - 3/8" x 1", rd. hd., Z.P. (Replaces 173-250)

8шт.

131-666

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.C. hex., Z.P.

8шт.

3

T55241

BRACKET - adjusting

2шт.

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

4

173-248

SCREW,Sl Rd Hd, 3/8 - 16 x 1 1/4"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

T55240

BAR - adjusting

2шт.

6

T55239

BRACKET - mounting

2шт.

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

SETSCREW - 1/2" x 1", sq. hd., Z.P.

2шт.

7

T50871

U-BOLT

"U" BOLT

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

T51867

SHIELD - R.H.

1шт.

9

T51868

SHIELD - L.H.

1шт.
