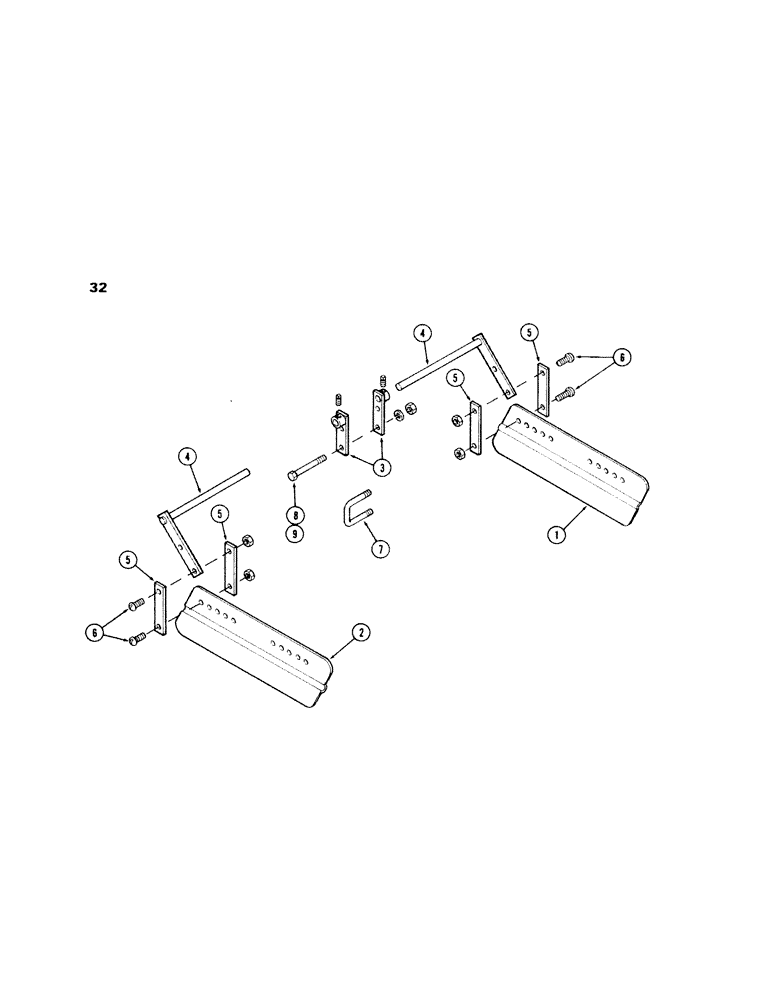

Запчасти Case IH 100-SERIES (32) - SLIDING SHIELD, PRIOR TO SN1605900

1

T51867

SHIELD - R.H.

1шт.

2

T51868

SHIELD - L.H.

1шт.

3

T51869

BRACKET - mounting, shield

4шт.

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

SETSCREW - 1/2" x 1", sq. hd.

4шт.

4

T51870

SUPPORT - shield

4шт.

5

T51871

LINK

8шт.

6

173-250

SCREW - machine, 3/8" x 1", rd. hd., Z.P.

8шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex

8шт.

7

T50871

U-BOLT

"U" BOLT

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

8шт.

8

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex., Z.P.

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

9

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.
