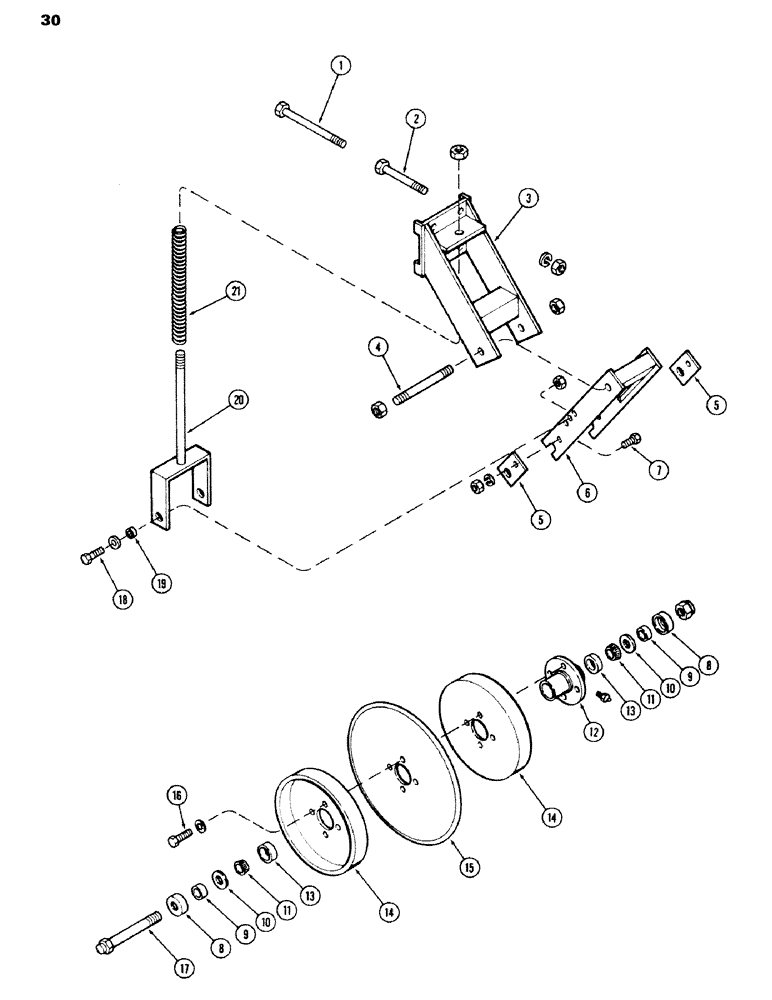

Запчасти Case IH 100-SERIES (30) - STABILIZER DISK WITH DEPTH BANDS, SN1605900 AND UP

1

T55236

BOLT

- stud, 5/8" x 9" (4" x 7" Toolbar)

2шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P. (4" x 4" Toolbar)

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

3

T55233

MOUNT - stabilizer

1шт.

4

T55237

PIVOT

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

5

T54022

RETAINER - axle bolt

2шт.

6

T55234

FRAME - stabilizer

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

T53495

CAP

- dust

2шт.

9

T53496

SPACER

2шт.

10

T51917

SEAL

- grease

2шт.

11

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

2шт.

12

T53497

HUB

- w/cups

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease. 1/4" taper

1шт.

13

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

14

T51920

WHEEL HALF

2шт.

15

T51853

DISC

DISK - stabilizer, 18"

1шт.

16

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

4шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

17

T54021

AXLE

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

2шт.

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2" N.C. hex., Z.P.

2шт.

19

TD3877

BUSHING

2шт.

20

T55235

ROD - pressure

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

1шт.

21

T31803

SPRING

1шт.
