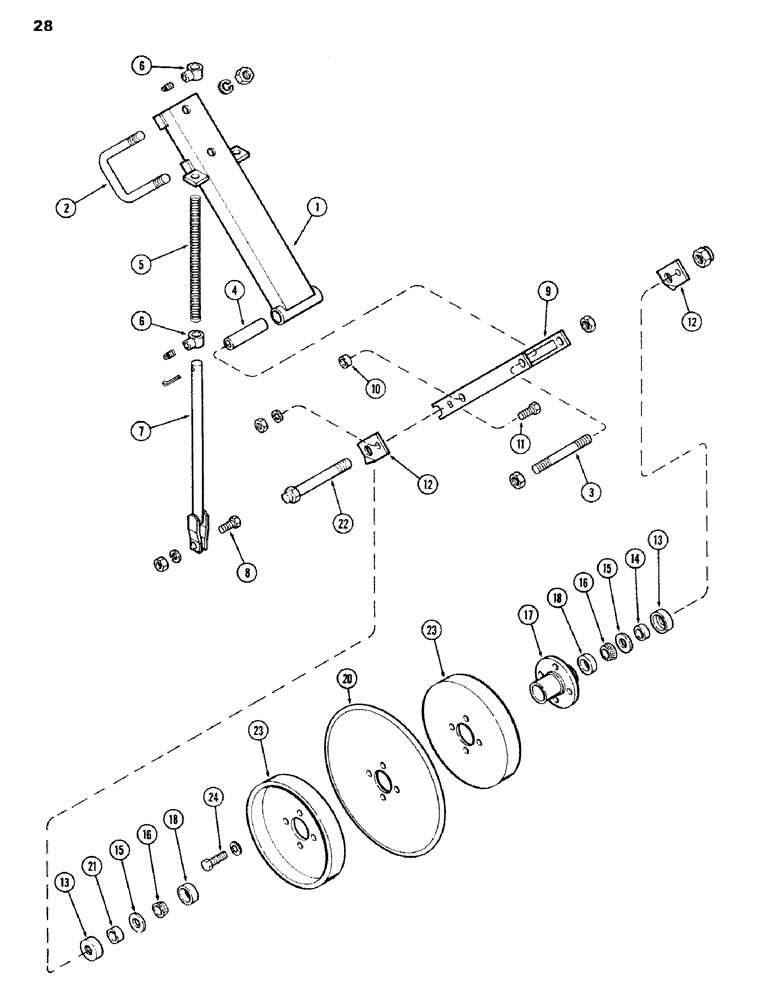

Запчасти Case IH 100-SERIES (28) - STABILIZER DISK WITH DEPTH BANDS, PRIOR TO SN1605900
№
Артикул
Название
Примечание
Количество
1
T51844
ARM - stabilizer, upper
1шт.
1
T54019
ARM - stabilizer, upper (Eff. Jan. 1975)
1шт.
2
T51850
"U" BOLT
1шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
129-108
NUT,3/4"-10, G5
2шт.
3
T54023
BOLT - stud, 3/4" x 7-1/2"
1шт.
131-385
LOCK NUT,3/4"-10, GA
NUT - lock, 3/4" N.C. hex., Z.P.
2шт.
4
T51848
SLEEVE - 1" O.D. x 4-5/16"
1шт.
4
T54024
SLEEVE - 1" O.D. x 5-3/16" (Eff. Jan. 1975)
1шт.
5
T28942
SPRING
- pressure
2шт.
6
T60253
COLLAR
4шт.
85-612
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
SETSCREW - 3/8" x 3/4", sq.hd., Z.P.
4шт.
7
T51845
ROD - pressure
2шт.
132-312
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
2шт.
8
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
9
T51846
ARM
FRAME - stabilizer
1шт.
10
TD3877
BUSHING
2шт.
11
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
12
T54022
RETAINER - axle bolt
2шт.
13
T51847
DUST CAP
CAP - dust
2шт.
13
T53495
CAP
- dust (Eff. July 1973)
2шт.
14
T51849
SPACER - 1-1/4" O.D. x 4-5/16"
1шт.
14
T51852
SPACER
- 1-1/4" O.D. x 9/16" (Eff. Jan. 1975)
1шт.
15
T51917
SEAL
- grease
2шт.
16
D29266
ROLLER BEARING,1" ID x 0.58"
CONE - bearing
2шт.
17
T53497
HUB
- w/cups (Replaces T51913, T51847 and 2-T51852)
1шт.
18
D29267
BEARING CUP,1.98" OD x 0.42"
CUP - bearing
2шт.
20
T51853
DISC
DISK - stabilizer, 18"
1шт.
21
T53496
SPACER
- 1-1/4" O.D. x 11/16"
1шт.
21
T54027
SPACER - 1-1/4" O.D. x 13/16" (Eff. Jan. 1975)
1шт.
22
T51851
AXLE
1шт.
22
T54021
AXLE
- (Repl. T51851)
1шт.
131-1184
LOCK NUT,1"-8, GA
NUT - lock, 1" N.C. hex., Z.P.
1шт.
23
T51920
WHEEL HALF
2шт.
24
114-400
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
4шт.
193-77
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
4шт.
Выбрано товаров: 40
