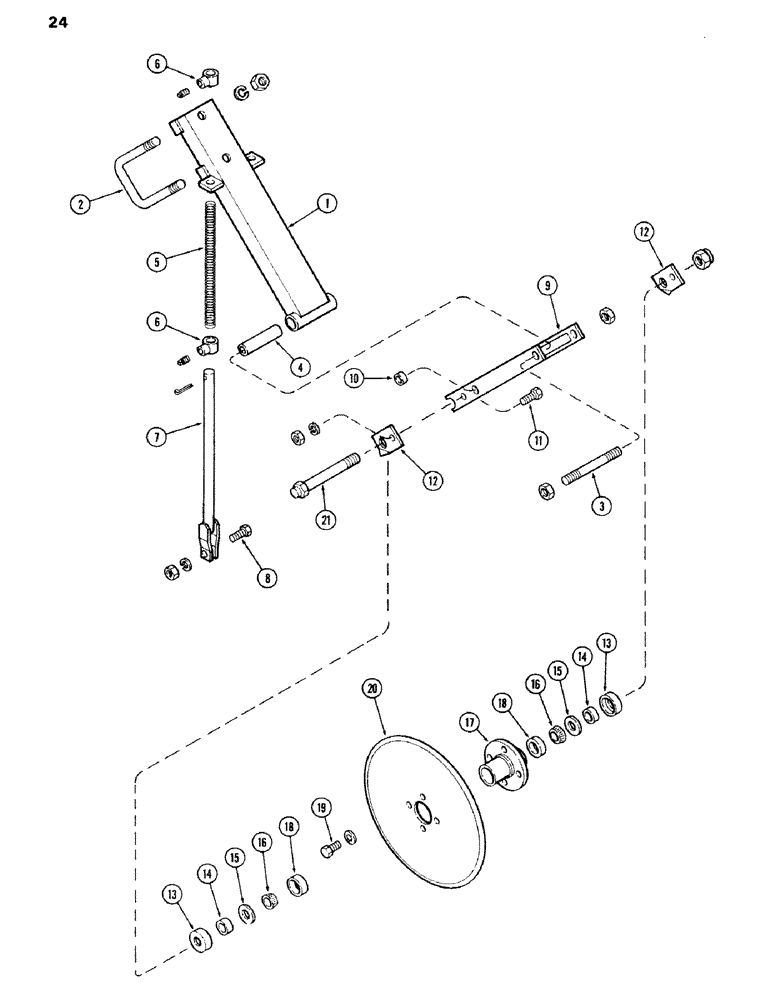

Запчасти Case IH 100-SERIES (24) - STABILIZER DISK W/O DEPTH BANDS, PRIOR TO SN1605900

1

T51844

ARM - stabilizer, upper

1шт.

1

T54019

ARM - stabilizer, upper (Eff. Jan. 1975)

1шт.

2

T51850

"U" BOLT

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

3

T54023

BOLT - stud, 3/4" x 7-1/2"

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

4

T51848

SLEEVE - 1" O.D. x 4-5/16"

1шт.

4

T54024

SLEEVE - 1" O.D. x 5-3/16" (Eff. Jan. 1975)

1шт.

5

T28942

SPRING

- pressure

2шт.

6

T60253

COLLAR

4шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" x 3/4", sq. hd., Z.P.

4шт.

7

T51845

ROD - pressure

2шт.

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

9

T51846

ARM

FRAME - stabilizer

1шт.

10

TD3877

BUSHING

2шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

T54022

RETAINER - axle bolt

2шт.

13

T51847

DUST CAP

CAP - dust

2шт.

13

T53495

CAP

- dust (Eff. July 1973)

2шт.

14

T51852

SPACER

- 1-1/4" O.D. x 9/16"

2шт.

14

T53496

SPACER

- (Eff. Jan. 1975)

2шт.

15

T51917

SEAL

- grease

2шт.

16

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

2шт.

17

T53497

HUB

- w/cups (Replaces T51913)

1шт.

18

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

19

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

4шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

20

T51853

DISC

DISK - stabilizer, 18"

1шт.

21

T51851

AXLE

1шт.

21

T54021

AXLE

- (Repl. T51851)

1шт.

131-1184

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.
