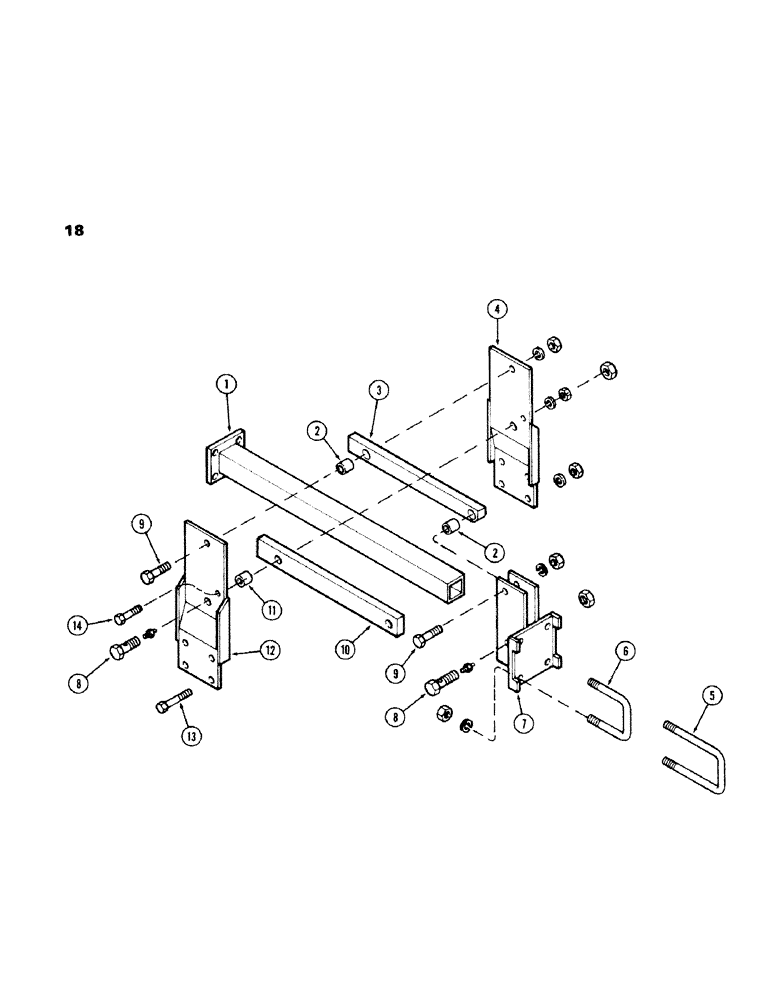

Запчасти Case IH 100-SERIES (18) - BOLTED GANG, SN1605900 AND UP

1

T53500

GANG - beam

1шт.

2

T52961

BUSHING

- upper link

2шт.

3

T51835

LINK - upper

1шт.

4

T51833

POST - L.H.

1шт.

5

T55254

"U" BOLT - 5/8" x 8-1/4" (4" x 7" Toolbar)

2шт.

6

T51888

U-BOLT

"U" BOLT - 5/8" x 5-1/4" (4" x 4" Toolbar)

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

7

T55271

MOUNT - gang

1шт.

8

T54030

BOLT

- lower link

2шт.

131-167

NUT

- jam lock, 7/8" N.F. hex., Z.P.

2шт.

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

10

T54029

LINK

- lower

1шт.

11

T52914

SPACER

- post, 7/8" O.D. x 1-1/64"

1шт.

12

T51832

POST - R.H.

1шт.

13

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
