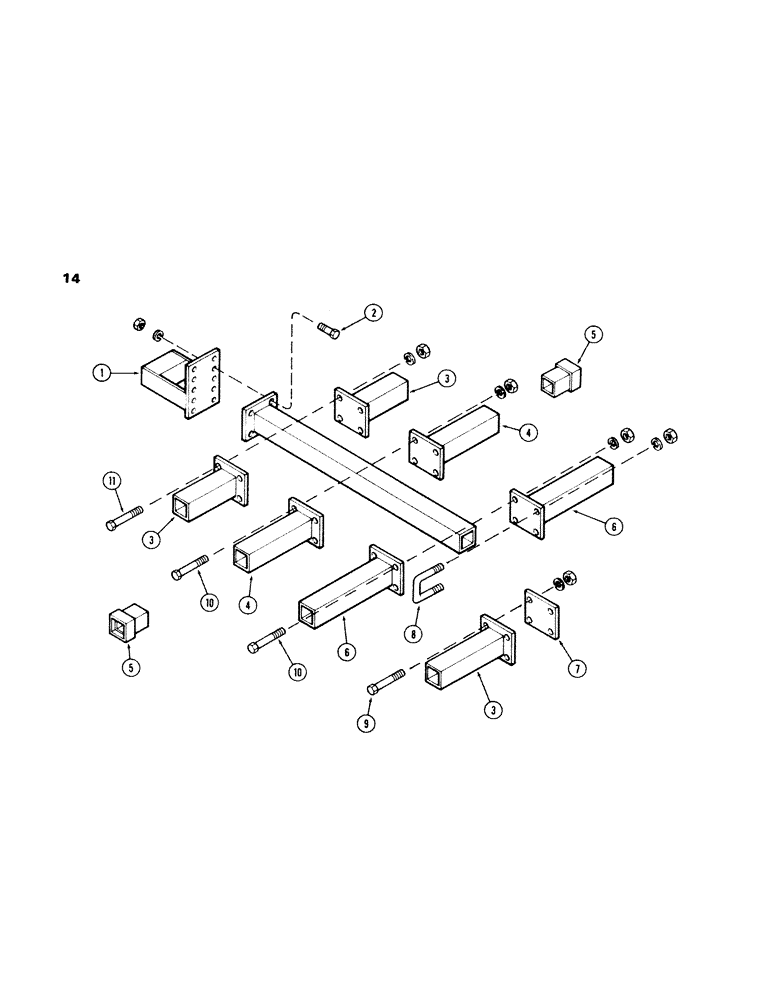

Запчасти Case IH 100-SERIES (14) - REAR SHANK MTS. EXT. MTG. PLATES & EXTENSIONS, SN1605900 AND UP

1

T55272

EXTENSION - adjustable

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

3

T51880

EXTENSION - 8-1/2"

1шт.

4

T51890

EXTENSION - 11"

1шт.

5

T52668

EXTENSION - 2"

1шт.

6

T28898

EXTENSION

- 13"

1шт.

7

T28897

PLATE - mounting, extension

1шт.

8

T50871

U-BOLT

"U" BOLT

1шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

9

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

10

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

11

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex., Z.P.

1шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.
