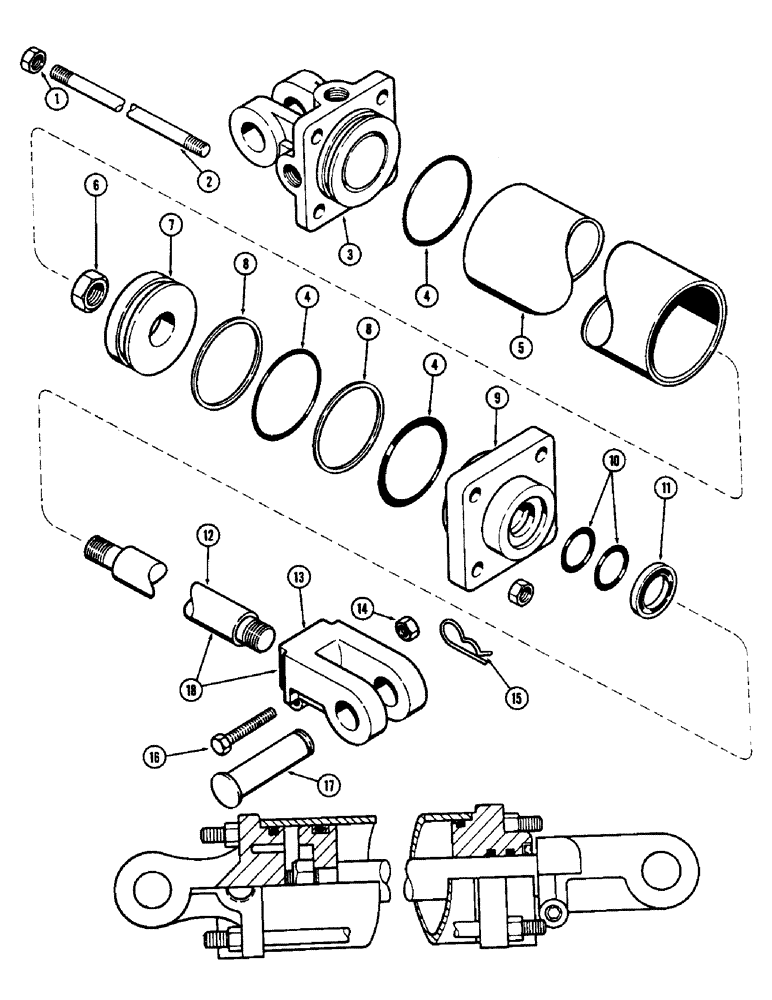

Запчасти Case IH WWC37-SERIES (14) - T52292 CYLINDER, 4 INCHES X 16 INCHES

T52292

CYLINDER

- complete (1972)

2шт.

1

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (1972)

8шт.

2

B17264

TIE-ROD

ROD - tie (1972)

4шт.

3

T52511

BASE - cylinder (1972)

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING (1972)

3шт.

Part of seal kit P/N B17233

1шт.

5

B17240

TUBE

- cylinder (1972)

1шт.

6

B17306

NUT

- piston rod (1972)

1шт.

7

T52512

PISTON (1972)

1шт.

8

A23535

OIL SEAL

SEAL - back-up (1972)

2шт.

Part of seal kit P/N B17233

1шт.

9

T52514

HEAD - cylinder (1972)

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING (1972)

2шт.

Part of seal kit P/N B17233

1шт.

11

B17291

WIPER SEAL

SEAL - wiper, lip type (1972)

1шт.

Part of seal kit P/N B17233

1шт.

12

T52513

ROD - piston (Use T52917 rod & clevis assy.) (1972)

1шт.

13

T52515

CLEVIS (Use T52917 rod & clevis assy.) (1972)

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (1972)

1шт.

15

B17308

CLIP

COTTER - hairpin (1972)

2шт.

16

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

CAPSCREW - 3/8" x 1-1/2" N.C. hex., sckt. hd., gr. 8 (1972)

1шт.

17

B17284

CLEVIS PIN

PIN - clevis (1972)

2шт.

18

T52917

ROD AND CLEVIS ASSY. (Repl. T52513 and T52515 inter.) (1972)

1шт.

B17233

SEAL

KIT, Includes Refs. 4, 8, 10 and 11 (1972)

1шт.
