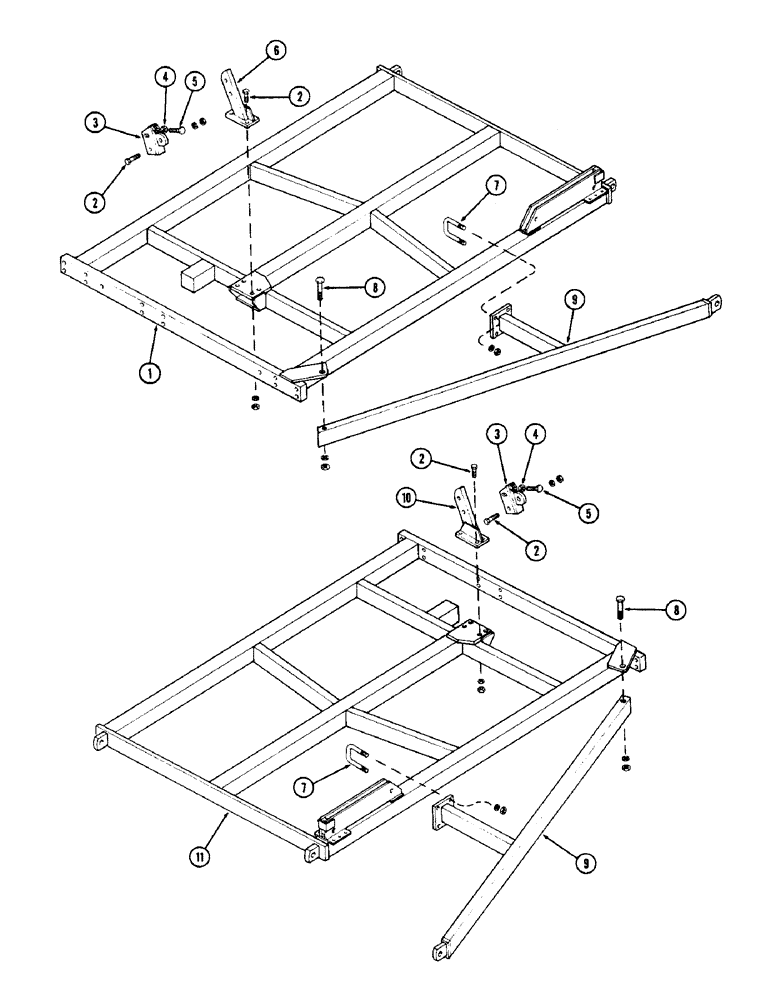

Запчасти Case IH WWC37-SERIES (11A) - WING AND WING BRACE

1

T53430

WING - R.H. (Replaces T53231 inter.) (73-)

1шт.

2

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P. (73-)

12шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

129-108

NUT,3/4"-10, G5

12шт.

3

T53240

BRACKET - cylinder adjusting (73-)

2шт.

4

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex. (73-)

2шт.

5

T53434

SCREW - adjusting, 3/4" x 4-1/4" (73-)

2шт.

6

T53432

BRACKET - cylinder mtg., R.H. (Repl. T53233 inter.) (73-)

1шт.

7

T52291

U-BOLT

"U" BOLT (73-)

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

8

13-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

(73-) Hex, 1"-8 x 7", G5

2шт.

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

129-110

NUT,1"-8, G5

2шт.

9

T52282

BRACE - wing (73-)

2шт.

10

T53433

BRACKET - cylinder mtg., L.H. (Repl. T53234 inter.) (73-)

1шт.

11

T53431

WING - L.H. (Replaces T53232 inter.) (73-)

1шт.
