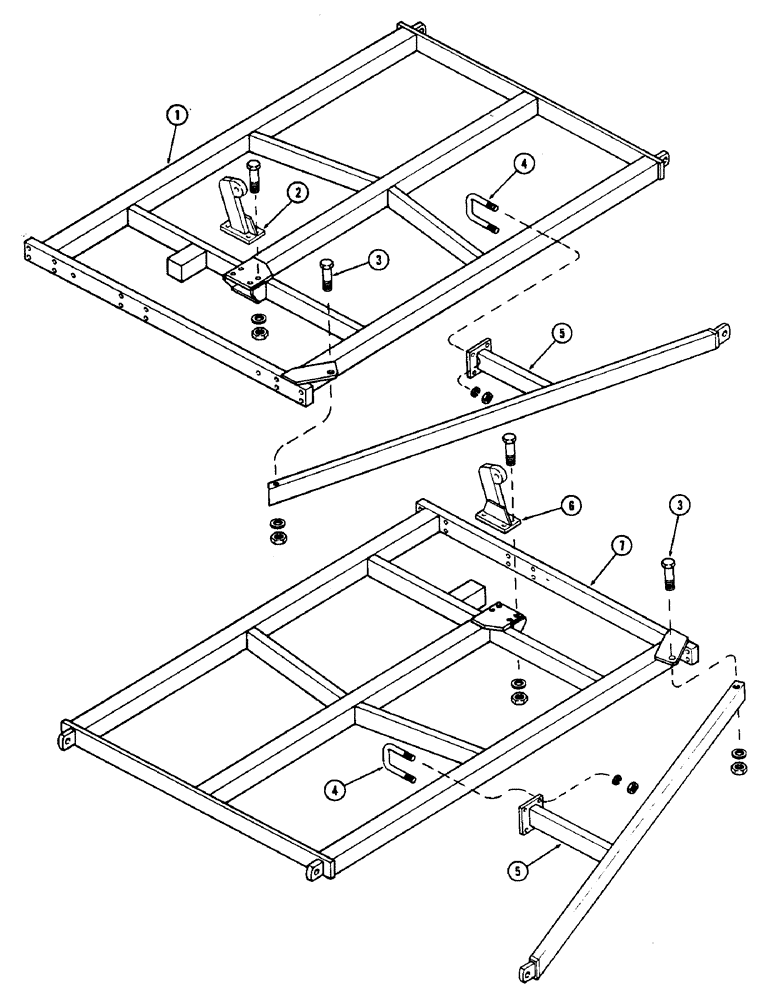

Запчасти Case IH WWC37-SERIES (10) - WING AND WING BRACE

1

T52280

WING - R.H. (1972)

1шт.

2

T52252

BRACKET - cylinder mounting, R.H. (1972)

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

3

13-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

(1972) Hex, 1"-8 x 7", G5

2шт.

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

129-110

NUT,1"-8, G5

2шт.

4

T52291

U-BOLT

"U" BOLT (1972)

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

5

T52282

BRACE - wing (1972)

2шт.

6

T52253

BRACKET - cylinder mounting, L.H. (1972)

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

7

T52281

WING - L.H. (1972)

1шт.
