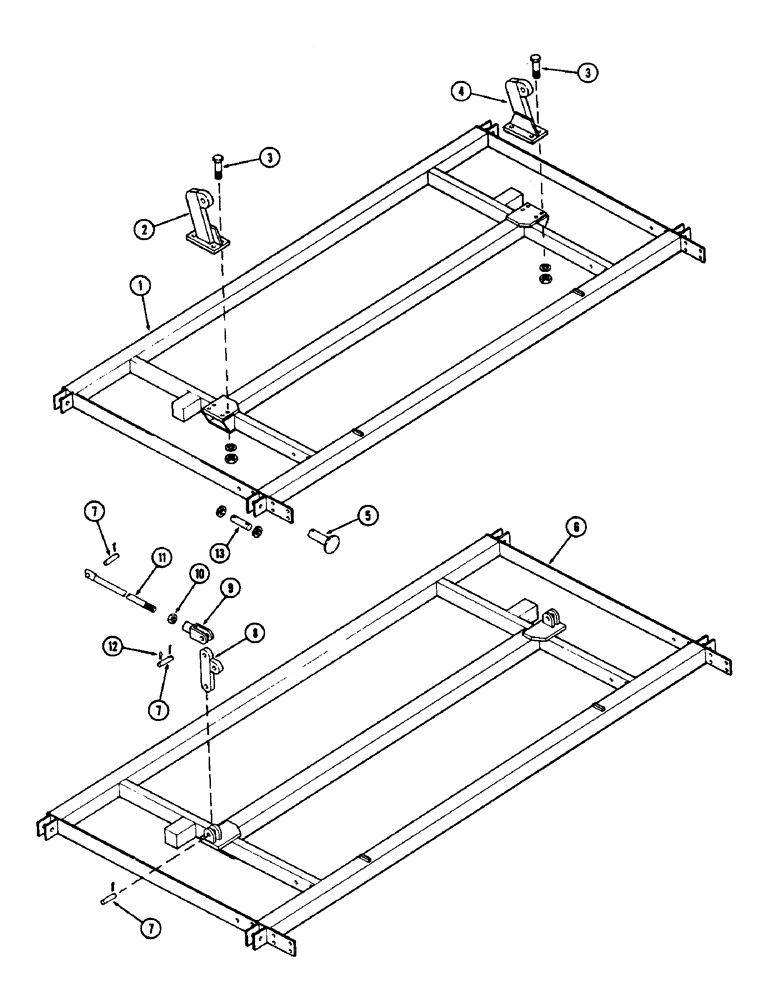

Запчасти Case IH WWC37-SERIES (06) - MAIN FRAME

1

T52263

FRAME - main (1972)

1шт.

2

T52252

BRACKET - cylinder mounting, R.H. (1972)

1шт.

3

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P. (1972)

8шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

129-108

NUT,3/4"-10, G5

8шт.

4

T52253

BRACKET - cylinder mounting, L.H. (1972)

1шт.

5

T52289

PIN - hinge (1972)

4шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

6

T53224

FRAME - main (73-)

1шт.

7

T52251

PIN - cylinder, 1" x 3-1/2" (73-)

6шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

10шт.

8

T53243

PIVOT - cylinder (73-)

2шт.

9

T53309

CLEVIS - rod (73-)

2шт.

10

129-112

NUT,1 1/4"-7, G5

- jam, 1-1/4" N.C. hex., Z.P. (73-)

2шт.

11

T53241

ROD - cylinder adjusting (73-)

2шт.

12

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin #8 (73-)

2шт.

13

T53435

PIN

- hinge, 1" x 3-3/4" (Replaces T53259 inter.) (73-)

4шт.

195-553

WASHER,1", SAE

- 2" x 1-1/16" x .134, Z.P.

8шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.
