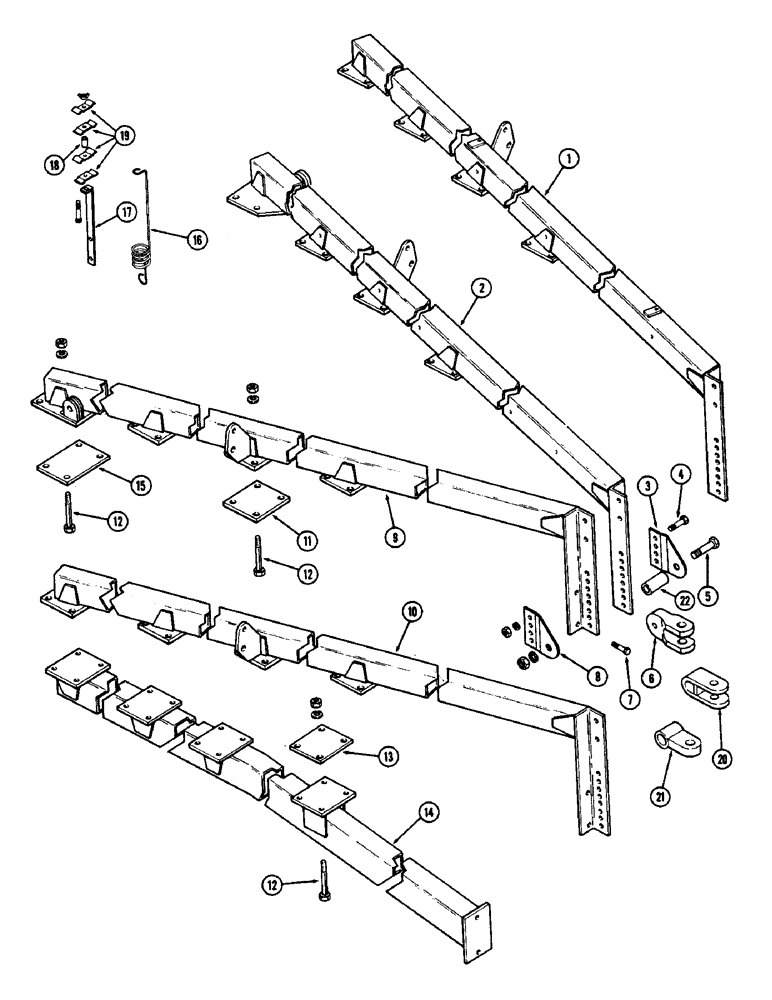

Запчасти Case IH WWC37-SERIES (04) - HITCH

1

T52525

HITCH - uppper, L.H. (1972)

1шт.

113-160

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- 5/16" x 1/2" N.C. hex., Z.P.

2шт.

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- 3/4" x 3-1/4" N.C. hex., Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

2

T53227

HITCH - upper, L.H. (73-)

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

2шт.

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- 3/4" x 3-1/4" N.C. hex., Z.P.

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

3

T52302

PLATE - hitch (1972)

2шт.

3

T52302

PLATE - hitch, L.H. (Thru ser. #71000) (73-)

1шт.

3

T53489

PLATE

- hitch, L.H. (73-)

1шт.

4

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(72-) Hex, 3/4"-10 x 4", G5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

5

13-1872

COVER PLATE,Hex, 1 1/8" - 7 x 4 1/2", Gr 5

BOLT - 1-1/8" x 4-1/2" N.C. hex. (Thru ser. #71000) (72-)

1шт.

5

13-966

BOLT - 1-1/8" x 6" N.C. hex. (73-)

1шт.

192-33

LOCK WASHER,1 1/8"

1 1/8"

1шт.

129-111

NUT,1 1/8"-7, G5

- 1-1/8" N.C. hex.

1шт.

6

T51820

CLEVIS - hitch (Yoke type) (1972)

1шт.

7

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P. (72-)

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

8

T53313

PLATE - hitch, R.H. (Thru ser. #71000) (73-)

1шт.

8

T53490

PLATE

- hitch, R.H. (73-)

1шт.

9

T53226

HITCH - upper, R.H. (73-)

1шт.

10

T52524

HITCH - upper, R.H. (1972)

1шт.

113-160

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- 5/16" x 1/2" N.C. hex., Z.P.

2шт.

11

T52301

PLATE - hitch mount (1972)

8шт.

11

T52301

PLATE - hitch mount (73-)

6шт.

12

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

(72-) Hex, 3/4"-10 x 6 1/2", G5

64шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

64шт.

129-108

NUT,3/4"-10, G5

64шт.

13

T52300

PLATE - support, lower hitch (72-)

8шт.

14

T52264

HITCH - lower (1972)

2шт.

14

T53225

HITCH - lower (73-)

2шт.

15

T53258

PLATE - backing, upper hitch (73-)

2шт.

16

T52521

SUPPORT

- hose (1972)

1шт.

17

T53260

SUPPORT

- hose (73-)

1шт.

18

H3005S

SPACER - hose clamp, 3/8" x 1-1/2" (72-)

1шт.

19

T37564

CLAMP - hose support (72-)

4шт.

111-414

BOLT - 7/16" x 3" cge., Z.P.

1шт.

129-420

NUT, WING

NUT - wing, 7/16" Z.P.

1шт.

20

T53492

CLEVIS - hitch (Yoke type) (73-)

1шт.

21

T53683

CLEVIS

- hitch (Block type) (73-)

1шт.

22

T53310

SPACER - 1-3/4" x 1-3/16" x 2-1/8" (Thru ser. #71000) (72-)

1шт.

22

T53493

SPACER - 2" x 1-1/4" x 3-5/8" (73-)

1шт.
