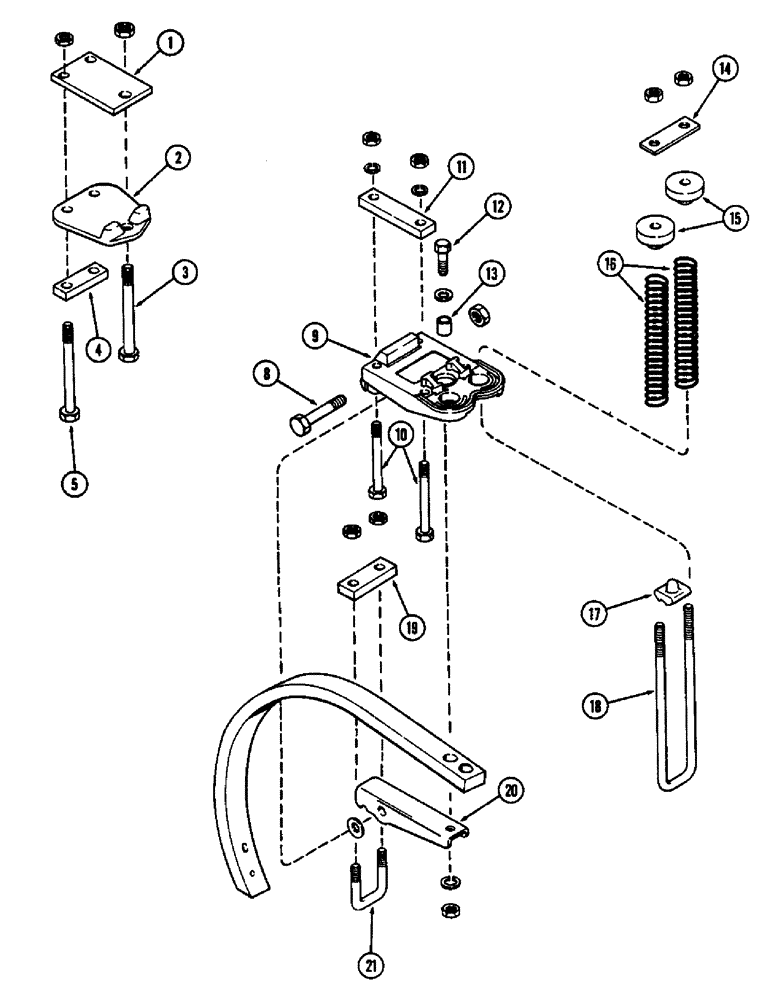

Запчасти Case IH WWC37-SERIES (32) - RIGID CLAMP

RIGID CLAMP

1шт.

1

T34884

PLATE - top (72-)

1шт.

2

T37763

PLATE - rigid clamp (72-)

1шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4" x 7-1/2" N.C. hex., Z.P. (72-)

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

4

T17664

CLAMP - tooth bar (72-)

1шт.

5

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8" x 7-3/4" N.C. hex., Z.P. (72-)

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

CUSHION CLAMP

1шт.

8

T52052

BOLT

- pivot (72-), cushion clamp

1шт.

195-2085

WASHER

- 1-1/2" x 13/16" x 16 ga., cushion clamp

1шт.

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Esna, cushion clamp 3/4"-10, GB

1шт.

9

T53673

PLATE

- base (Replaces T2211 inter.) (73-), cushion clamp

1шт.

10

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P. (72-), cushion clamp

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

4шт.

129-107

NUT,5/8"-11, G5

Cushion clamp 5/8"-11, G5

4шт.

11

T52051

STRAP - clamp (72-), cushion clamp

2шт.

12

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8" x 2-1/4" N.C. hex., Z.P. (72-), cushion clamp

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

1шт.

129-107

NUT,5/8"-11, G5

Cushion clamp 5/8"-11, G5

1шт.

195-2072

WASHER,11/16" x 1 1/8" x 109"

- 1-1/8" x 11/16" x 12 ga., cushion clamp

1шт.

13

T22329

BUSHING

(72-), cushion clamp

1шт.

14

T22330

STRAP

- "U" bolt (72-), cushion clamp

1шт.

15

T1593

CAP

- spring (72-), cushion clamp

2шт.

16

T20296

SPRING

- cushion (72-), cushion clamp

2шт.

17

T38977

BLOCK

- "U" bolt (72-), cushion clamp

1шт.

18

T52310

U-BOLT

"U" BOLT - spring (72-), custion clamp

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C. Gripco, cushion clamp

2шт.

19

T25684

STRAP

- "U" bolt (72-), cushion clamp

1шт.

20

T53674

BRACKET

- hinge (Replaces T1753 inter.) (73-), cushion clamp

1шт.

21

T52093

U-BOLT

"U" BOLT - hinge bracket (72-), cushion clamp

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C. Gripco, cushion clamp

2шт.

22

T35133

SHANK

- spring, 1" x 2" x 26" (72-), cushion clamp

1шт.
