Запчасти Case IH WWC37-SERIES (30) - FRONT EXTENSION AND FRAME EXTENSIONS

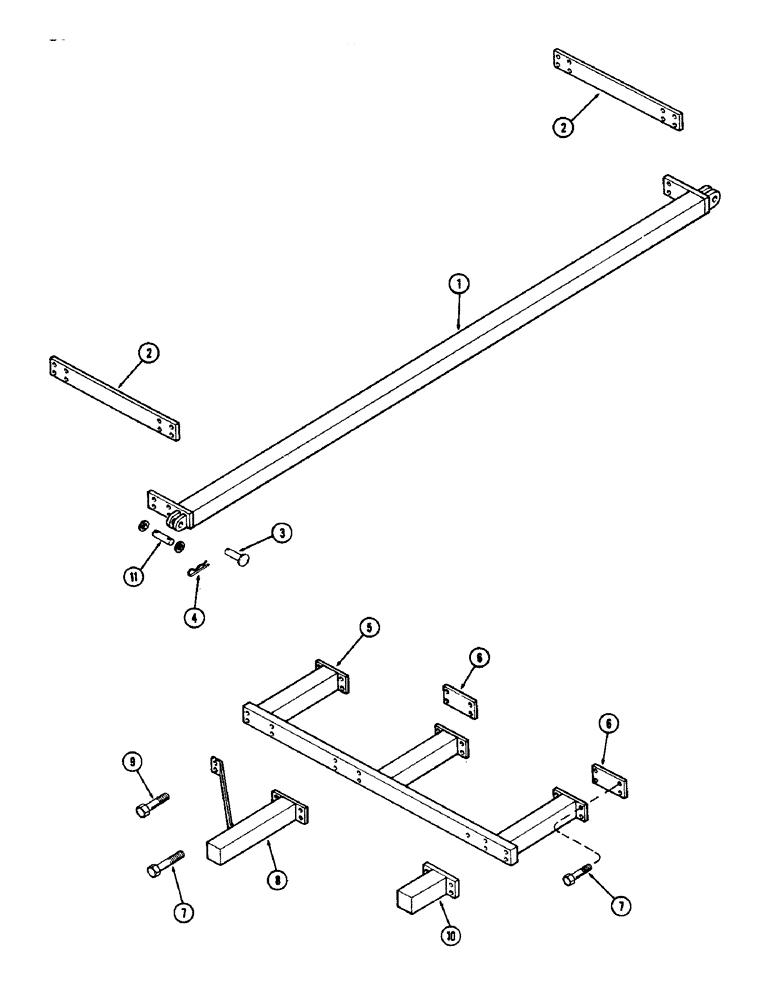

Схема запчастей Case IH WWC37-SERIES - (30) - FRONT EXTENSION AND FRAME EXTENSIONS

Артикул

Название

Примечание

Количество

1

T52272

EXTENSION - front (72-)

1шт.

2

T52273

BAR - attaching (72-)

2шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

16шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

129-108

NUT,3/4"-10, G5

16шт.

3

T52289

PIN - hinge (1972)

2шт.

4

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin (1972)

2шт.

5

T52260

EXTENSION - frame, 2 ft. (72-)

2шт.

6

T52261

PLATE - backing (72-)

4шт.

7

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(72-) Hex, 3/4"-10 x 4", G5

28шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

28шт.

129-108

NUT,3/4"-10, G5

28шт.

8

T52258

EXTENSION - 2 ft. (72-)

2шт.

9

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(72-) Hex, 3/4"-10 x 3 1/2", G5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

10

T52257

EXTENSION - 1 ft. (72-)

2шт.

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

129-108

NUT,3/4"-10, G5

8шт.

11

T53435

PIN

- hinge, 1" x 3-3/4" (Replaces T53259 inter.) (73-)

2шт.

195-553

WASHER,1", SAE

- 2" x 1-1/16" x .134, Z.P.

4шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

Выбрано товаров: 23
