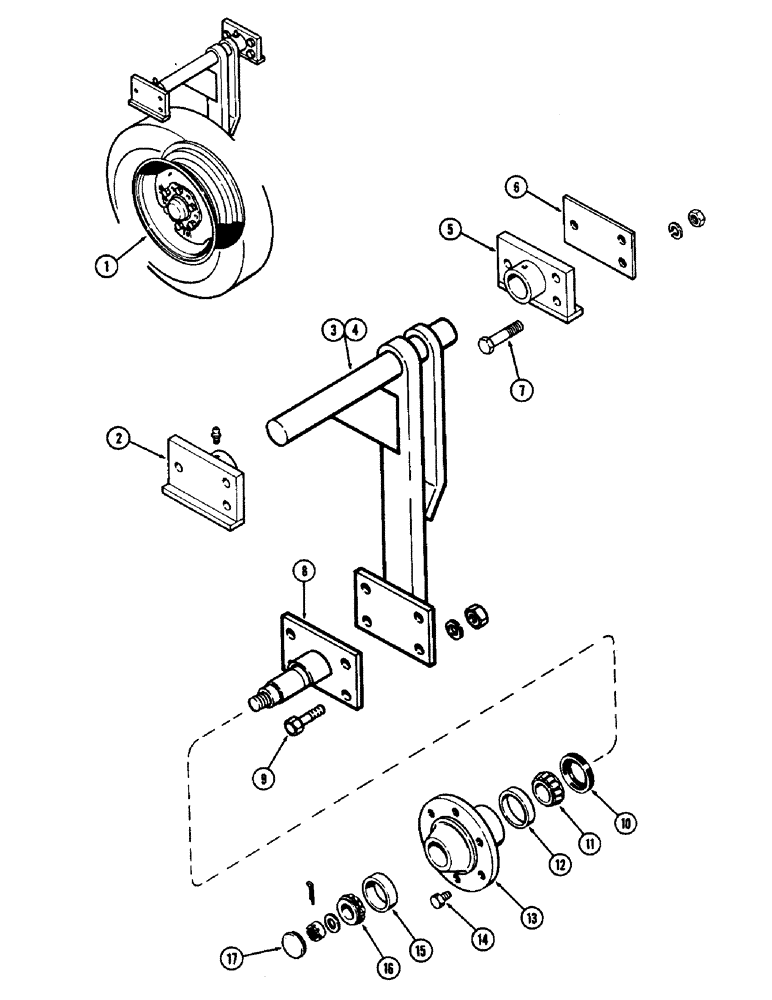

Запчасти Case IH WWC37-SERIES (28) - WHEEL AND WHEEL LEG

1

G57007

WHEEL

- 7.60 X 15 (1972)

2шт.

1

T53528

WHEEL

- 15" (74-)

2шт.

2

T52298

BRACKET - bearing, L.H. (72-)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4" straight

2шт.

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

129-108

NUT,3/4"-10, G5

6шт.

3

T52274

LEG - wheel, R.H. (1972)

1шт.

3

T53883

LEG - wheel, R.H. (Effective ser. #70801) (73-)

1шт.

4

T52279

LEG - wheel, L.H. (1972)

1шт.

4

T53884

LEG - wheel, L.H. (Effective ser. #70801) (73-)

1шт.

5

T52297

BRACKET - bearing, R.H. (72-)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

2шт.

6

T52299

PLATE - backing (72-)

4шт.

7

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

(72-) Hex, 3/4"-10 x 6", G5

6шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

129-108

NUT,3/4"-10, G5

6шт.

8

T52275

PLATE AND SPINDLE (1972)

2шт.

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex., slotted

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

8

T53350

PLATE AND SPINDLE (73-)

2шт.

195-53

WASHER,1" x 2" x .134"

- 2" O.D. x 1-1/16" I.D.

2шт.

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

9

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P. (72-)

8шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

129-108

NUT,3/4"-10, G5

8шт.

10

T52277

SEAL

- grease (72-)

2шт.

11

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing, inner (72-)

2шт.

12

H751370

BEARING CUP

CUP - bearing, inner (72-)

2шт.

13

T52276

HUB

- wheel (1972)

2шт.

13

T53229

HUB

- wheel (73-)

2шт.

14

T52304

STUD

- wheel, 9/16" x 1-1/2" N.F. (1972)

12шт.

14

A30064

BOLT

STUD - wheel, 1/2" x 1-1/16" (73-)

12шт.

15

G57451

BEARING, CUP

CUP - bearing, outer (1972)

2шт.

15

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, outer (73-)

2шт.

16

G57452

ROLLER BEARING

CONE - bearing, outer (1972)

2шт.

16

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, outer (73-)

2шт.

17

T52278

CAP

- dust (1972)

2шт.

17

T23707

CAP

- dust (73-)

2шт.
