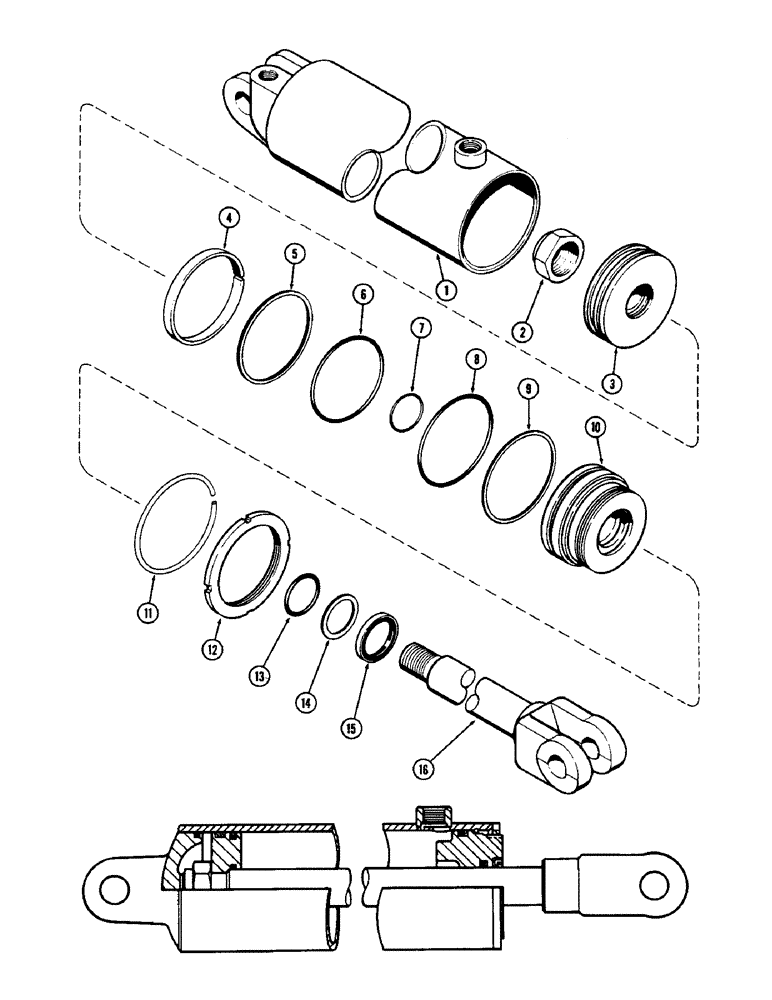

Запчасти Case IH WWC37-SERIES (26) - T52243 CYLINDER, 3-1/2 INCHES X 8 INCHES

T52243

CYLINDER - complete (72-)

1шт.

1

T52504

BARREL (72-)

1шт.

2

131-371

LOCK NUT

NUT - lock, 1-1/8" N.F., Z.P. (72-)

1шт.

3

T52502

PISTON (72-)

1шт.

4

T52501

RING - wear (72-)

1шт.

Part of seal kit P/N T52508

1шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

"O" RING - 1/8" x 3-1/8" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

6

HO94326

RING - piston, teflon, 3-1/2" O.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

7

T52486

O-RING

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - 1/8" x 3-1/4" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

WASHER - back-up, rubber, 1/8" x 3-1/4" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

10

T52503

BEARING (72-)

1шт.

11

T52507

RING, SNAP

RING - lock, 5/32" x 3-3/4" O.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

12

H162966

NUT

- bearing, 3-1/4" (72-)

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

14

L32992

RING

WASHER - back-up, rubber, 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52508

1шт.

15

T52485

SEAL

- wiper, 1-3/8" (72-)

1шт.

Part of seal kit P/N T52508

1шт.

16

T53885

ROD ASSY.

ROD - piston (Replaces T52484 inter.) (74-)

1шт.

T52508

KIT

SEAL KIT, Includes Refs. 4, 5, 6, 7, 8, 9, 11, 13, 14 and 15 (72-)

1шт.
