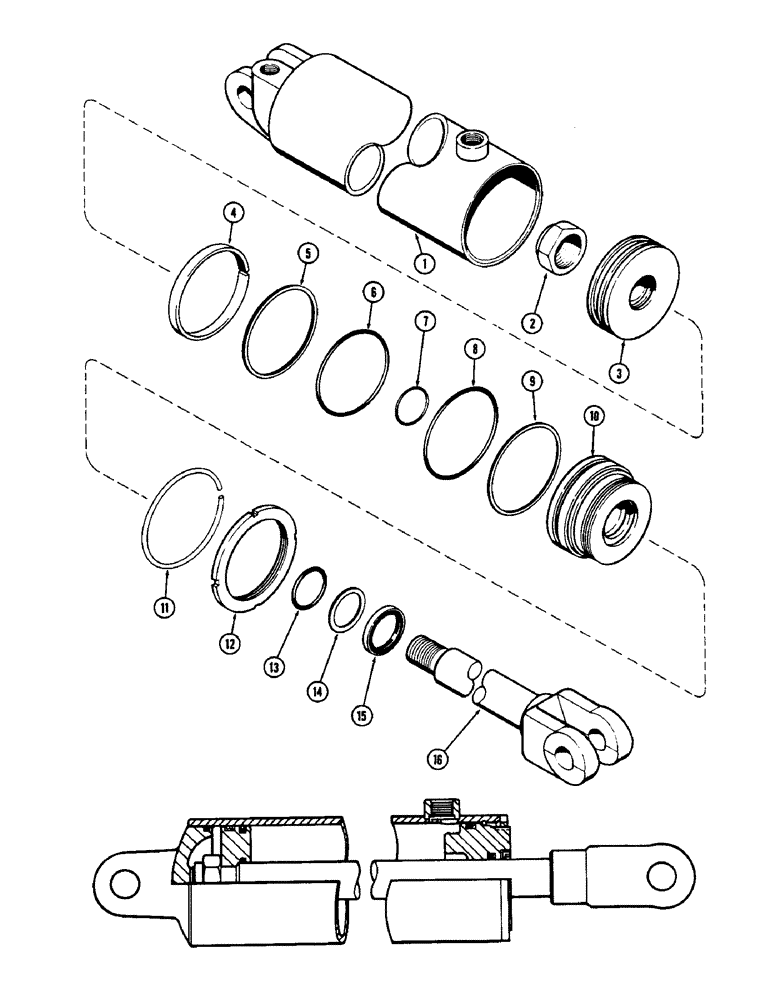

Запчасти Case IH WWC37-SERIES (24) - T52240 CYLINDER, 3-3/4 INCHES X 8 INCHES

T52240

CYLINDER - complete (72-)

1шт.

1

T52491

BARREL (72-)

1шт.

2

131-371

LOCK NUT

NUT - lock, 1-1/8" N.F., Z.P. (72-)

1шт.

3

T52493

PISTON

(72-)

1шт.

4

T52494

RING

- wear (72-)

1шт.

Part of seal kit P/N T52500

1шт.

5

T52498

RING

- piston, teflon, 3-3/4" O.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

6

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

"O" RING - 1/8" x 3-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

7

T52486

O-RING

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - 1/8" x 3-1/2" I.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

WASHER - back-up, rubber, 1/8" x 3-1/2" I.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

10

T52492

BEARING (72-)

1шт.

11

T52499

RING - lock, 5/32" x 4" O.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

12

T52497

NUT

- bearing, 3-1/2" (72-)

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

14

L32992

RING

WASHER - back-up, rubber, 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52500

1шт.

15

T52485

SEAL

- wiper, 1-3/8" (72-)

1шт.

Part of seal kit P/N T52500

1шт.

16

T53885

ROD ASSY.

ROD - piston (Replaces T52484 inter.) (74-)

1шт.

T52500

KIT

SEAL KIT, Includes Refs. 4, 5, 6, 7, 8, 9, 11, 14 and 15 (72-)

1шт.
