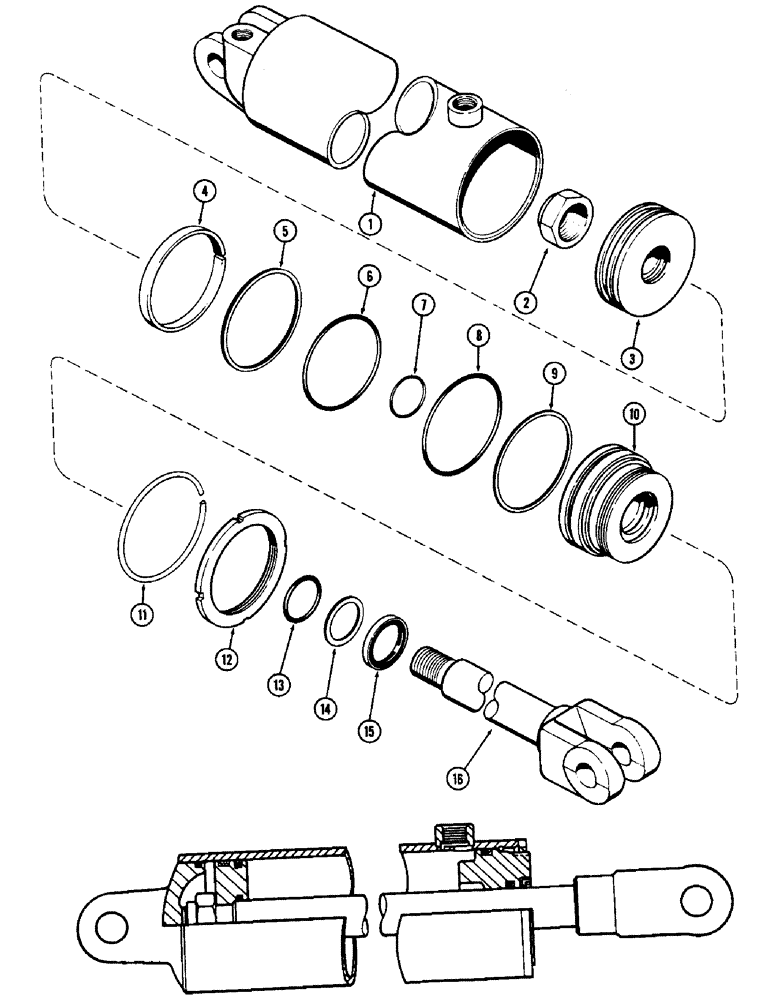

Запчасти Case IH WWC37-SERIES (22) - T52239 CYLINDER, 4 INCHES X 8 INCHES

T52239

CYLINDER - complete (72-)

1шт.

1

T52481

BARREL (72-)

1шт.

2

131-371

LOCK NUT

NUT - lock, 1-1/8" N.F., Z.P. (72-)

1шт.

3

T52483

PISTON (72-)

1шт.

4

G31927

RING

- wear (72-)

1шт.

Part of seal kit P/N T52489

1шт.

5

G31928

RING

- piston, teflon, 4" O.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

6

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - 1/8" x 3-5/8" I.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

7

T52486

O-RING

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

8

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - 1/8" x 3-3/4" I.D. (72--)

1шт.

Part of seal kit P/N T52489

1шт.

9

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

WASHER - back-up, 1/8" x 3-3/4" I.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

10

T52482

BEARING (72-)

1шт.

11

A41171

RING, LOCKING

RING - lock, 5/32" x 4-1/4" O.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

12

T52488

SPECIAL NUT

- bearing, 3-3/4" (72-)

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

14

L32992

RING

WASHER - back-up, rubber, 1/8" x 1-3/8" I.D. (72-)

1шт.

Part of seal kit P/N T52489

1шт.

15

T52485

SEAL

- wiper (72-)

1шт.

Part of seal kit P/N T52489

1шт.

16

T53885

ROD ASSY.

ROD - piston (Replaces T52484 inter.) (74-)

1шт.

T52489

KIT

SEAL KIT, Includes Refs. 4, 5, 6, 7, 8, 9, 11, 13, 14 and 15 (72-)

1шт.
