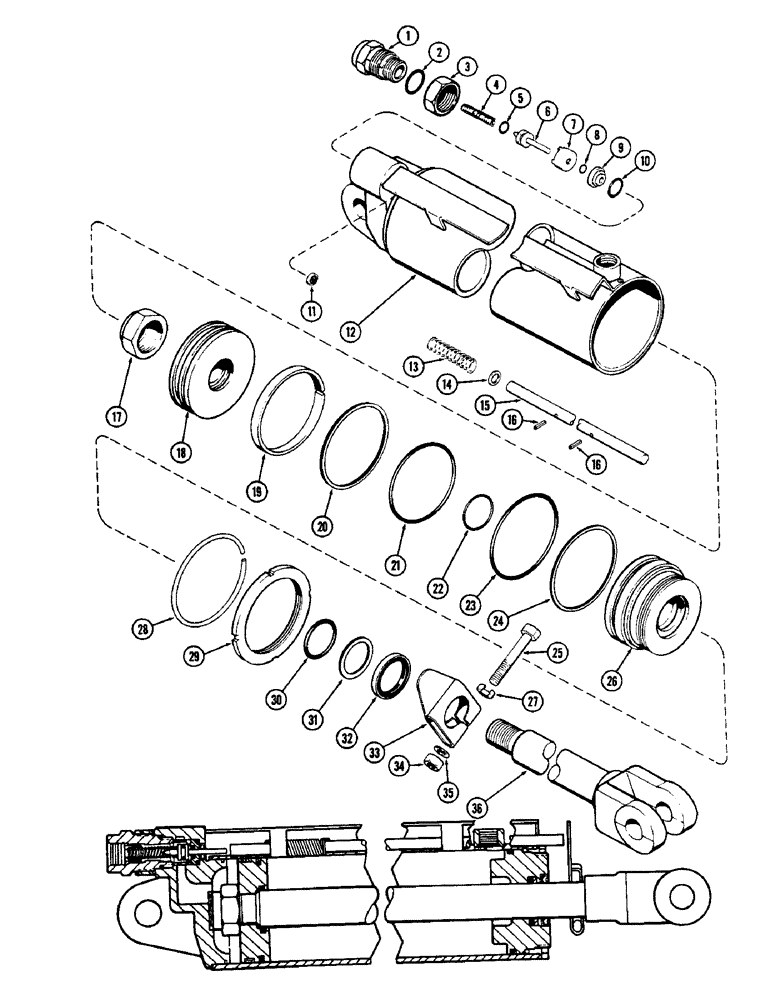

Запчасти Case IH WWC37-SERIES (20) - T52237 CYLINDER, 4-1/4 INCHES X 8 INCHES

T52237

CYLINDER - complete (72-)

1шт.

1

T52472

FITTING

PORT ASSEMBLY (72-)

1шт.

2

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - 3/32" x 7/8" I.D. (72-)

1шт.

Part of seal kit P/N T52480

1шт.

3

T52471

NUT - port assembly (72-)

1шт.

4

A41163

SPRING

- plunger (72-)

1шт.

5

A41160

INSERT

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

6

A41430

PLUNGER

(72-)

1шт.

7

A41429

SPACER

(72-)

1шт.

8

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

9

T52469

RETAINER

SEAL - retainer (72-)

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

11

G31932

WIPER SEAL

SEAL - wiper (72-)

1шт.

Part of seal kit P/N T52480

1шт.

12

T52474

BARREL (72-)

1шт.

13

A41154

SPRING

- push rod (72-)

1шт.

14

A41155

WASHER

(72-)

1шт.

15

T52473

ROD

- push (72-)

1шт.

16

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, (72-) 5/32" x 5/8", Slotted

2шт.

17

131-371

LOCK NUT

NUT - lock, 1-1/8" N.F. hex. (72-)

1шт.

18

T52476

PISTON

(72-)

1шт.

19

T52467

RING - wear (72-)

1шт.

Part of seal kit P/N T52480

1шт.

20

T52468

RING

- piston (72-)

1шт.

Part of seal kit P/N T52480

1шт.

21

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

22

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

23

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

24

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Rubber, 1/8" x 4" I.D. (72-)

1шт.

Part of seal kit P/N T52480

1шт.

25

114-217

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex., Z.P. (72-)

1шт.

26

T52475

BEARING (72-)

1шт.

27

A41352

LOCK WASHER

LOCK (72-)

1шт.

28

T52479

RING, SNAP

RING - lock (72-)

1шт.

Part of seal kit P/N T52480

1шт.

29

T52470

NUT

- bearing (72-)

1шт.

30

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING (72-)

1шт.

Part of seal kit P/N T52480

1шт.

31

T31052

RING

WASHER - back-up, rubber, 3/16" x 1-1/2" I.D. (72-)

1шт.

Part of seal kit P/N T52480

1шт.

32

A41785

WIPER SEAL

SEAL - wiper (72-)

1шт.

Part of seal kit P/N T52480

1шт.

33

A41149

CLAMP

- stop (72-)

1шт.

34

A41167

LOCK NUT

NUT - lock (72-)

1шт.

35

A41353

WASHER

(72-)

1шт.

36

T52466

ROD

- piston (72-)

1шт.

T52480

KIT

SEAL KIT, Includes Refs. 2, 5, 8, 10, 11, 19, 20, 21, 22, 23, 24, 28, 30, 31 and 32 (72-)

1шт.
