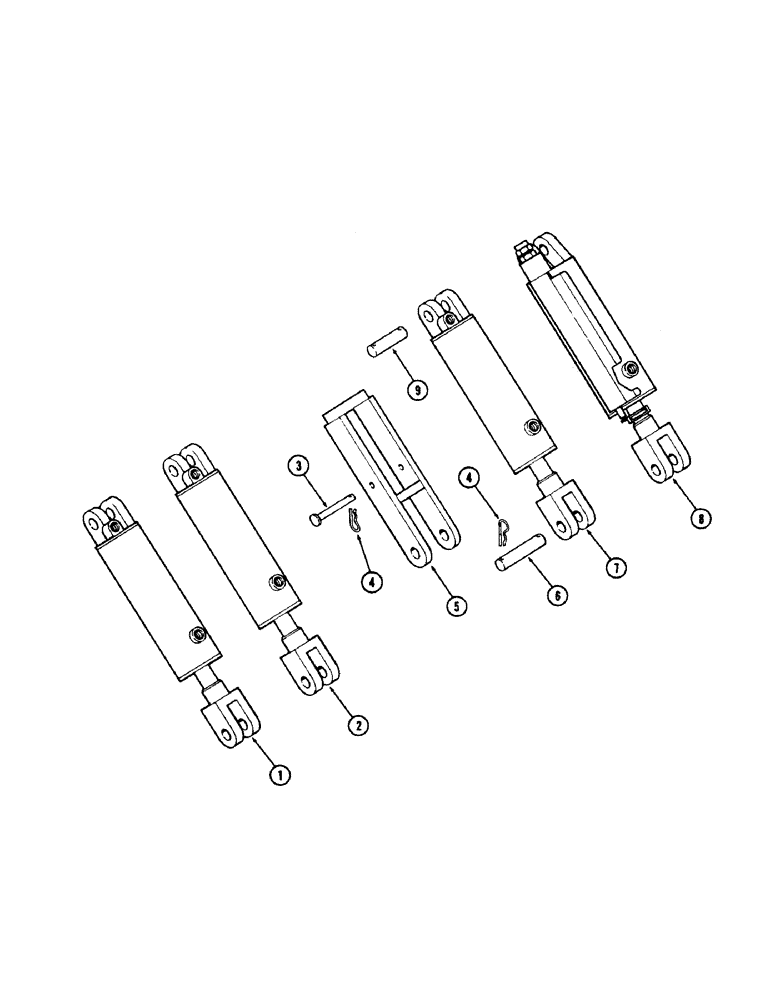

Запчасти Case IH WWC37-SERIES (18) - HYDRAULIC WHEEL CYLINDERS

1

T52243

CYLINDER - 3-1/2" x 8", outer R.H. (See pg. 26) (72-)

1шт.

2

T52240

CYLINDER - 3-3/4" x 8", inner R.H. (See pg. 24) (72-)

1шт.

3

T53236

PIN

- 1/2" x 4-3/8" (72-)

2шт.

4

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin, #8 (1972)

18шт.

4

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin, #8 (73-)

2шт.

5

T52254

LOCKUP (1972)

2шт.

5

T53235

LOCKUP (73-)

2шт.

6

T52250

PIN - cylinder, 1" x 4-3/4" (72-)

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

4шт.

7

T52239

CYLINDER - 4" x 8", inner L.H. (See page 22) (72-)

1шт.

8

T52237

CYLINDER - 4-1/4" x 8", outer L.H. (See pg. 20) (72-)

1шт.

9

T52251

PIN - cylinder, 1" x 3-1/2" (72-)

6шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

12шт.

A28541

COUPLING, BREAK AWAY

COUPLING - break-away, male (72-)

4шт.
