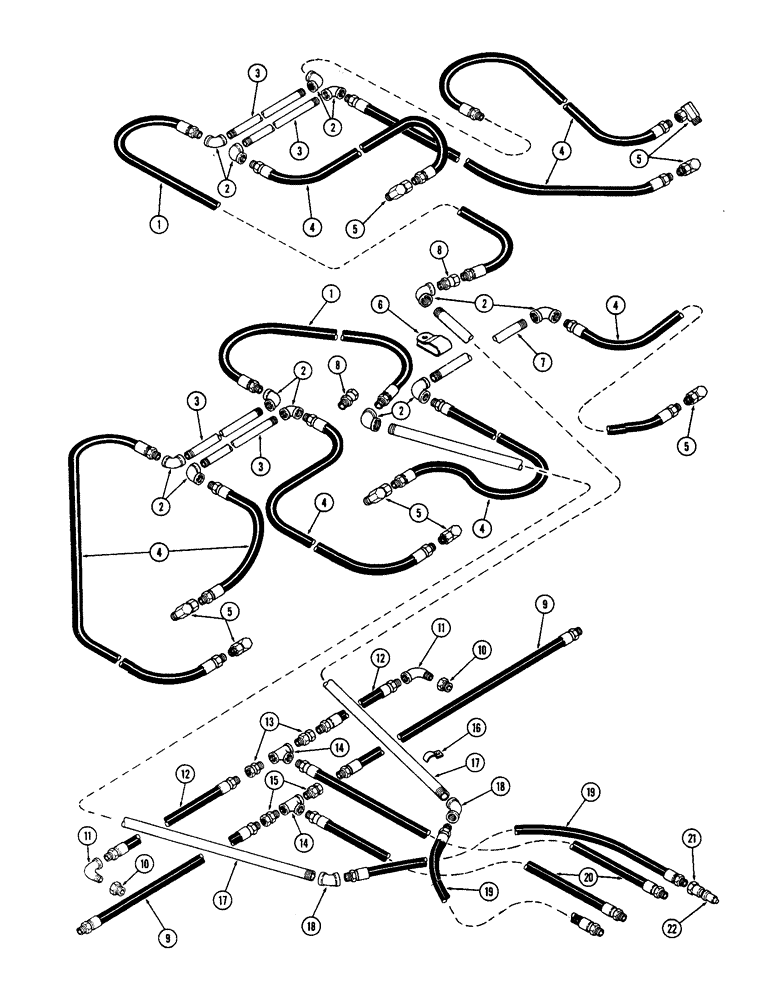

Запчасти Case IH WWC37-SERIES (16) - HYDRAULIC HOSES AND PIPES

1

T52319

HOSE ASSY.

HOSE - hydraulic, 1/2" x 42" (1972)

2шт.

2

221-1368

ELBOW,45 Degree, 1/2" NPT

- pipe, 1/2" x 90 degrees (1972)

12шт.

3

T52315

PIPE - hydraulic, 1/2" x 70" (1972)

4шт.

4

T52318

HOSE ASSY.

HOSE - hydraulic, 1/2" x 32" (1972)

8шт.

5

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

SWIVEL - 3/4" x 1/2" (1972)

8шт.

6

T52256

CLAMP

- hose (1972)

8шт.

7

T52316

PIPE - hydraulic, 1/2" x 80" (1972)

1шт.

8

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

SWIVEL - male and female, 1/2" (1972)

2шт.

9

T52293

HOSE - hydraulic, 3/8" x 68" (1972)

2шт.

10

221-1056

BUSHING

- reducer, 3/8" x 1/2" (1972)

4шт.

11

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" x 90 degrees (1972)

4шт.

12

T35360

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R1

(1972) 0.38" ID x 48.00", SAE 100R1

2шт.

13

218-902

HYD CONNECTOR,3/8" NPT x 3/8" - 18 ORFS

UNION - swivel adapter, plain, 3/8" (1972)

2шт.

14

221-1423

TEE,Pipe, 3/8" NPT

- pipe, 3/8" (1972)

2шт.

15

T52296

PIPE

UNION - swivel adapter, orificed, 3/8" (1972)

2шт.

16

T52523

CLAMP - hydraulic pipe (1972)

4шт.

17

T52317

PIPE - hydraulic, 1/2" x 120" (1972)

2шт.

18

217-1123

ELBOW - pipe, 1/2" x 45 degrees (1972)

2шт.

19

T52314

HOSE - hydraulic, 1/2" x 110" (1972)

2шт.

20

T35376

HYDRAULIC HOSE,0.38" ID x 162.00", SAE 100R1

(1972) 0.38" ID x 162.00", SAE 100R1

2шт.

21

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- male, 1/2" x 7/8" (1972)

4шт.

22

A28541

COUPLING, BREAK AWAY

COUPLING - breakaway, male (See page 18) (1972)

4шт.
