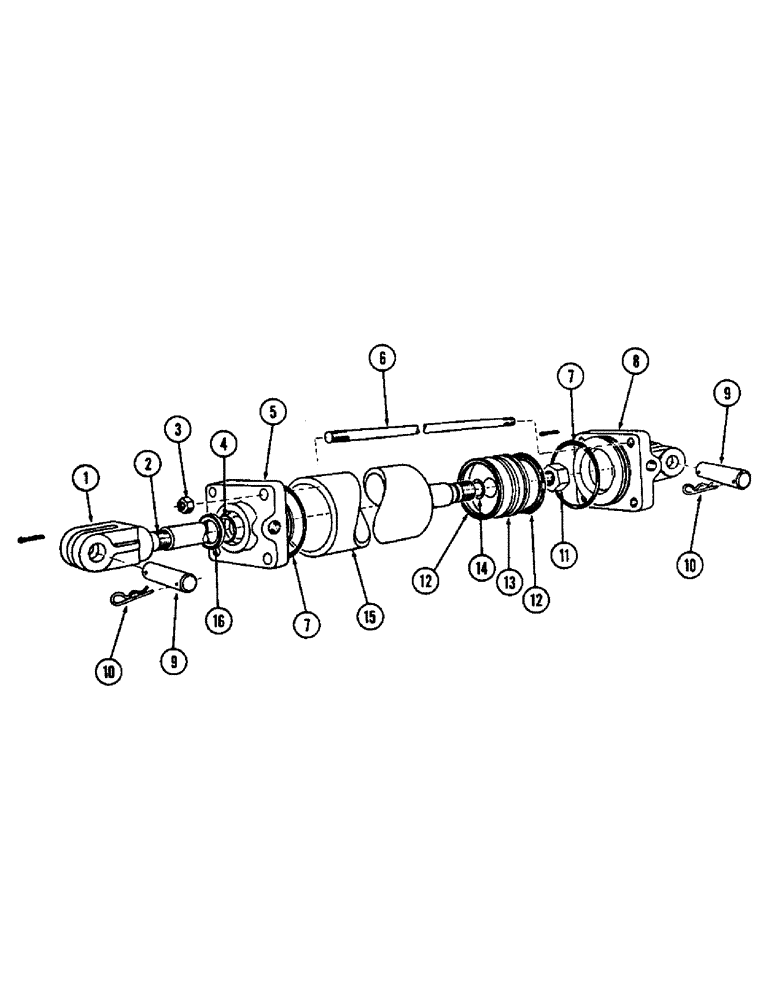

Запчасти Case IH WWC37-SERIES (15A) - T53250 CYLINDER, 4 INCHES X 16 INCHES

T53250

CYLINDER

- complete (73-)

2шт.

1

T53324

CLEVIS - rod (73-)

1шт.

2

T53321

ROD - piston (73-)

1шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

Tie rod (73-) 1/2"-13, G5

4шт.

4

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4" x 1-1/2" (73-)

1шт.

Part of seal kit P/N T63151

1шт.

5

T53319

CAP - rod (73-)

1шт.

6

T53322

ROD - tie (73-)

4шт.

7

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - 3-3/4 x 4" (73-)

2шт.

Part of seal kit P/N T63151

1шт.

8

T53318

CAP - clevis (73-)

1шт.

9

T53325

PIN (73-)

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

10

A29054

HAIR PIN COTTER

COTTER - hairpin (73-)

2шт.

11

129-130

NUT,1"-14, G5

- piston rod, 1" N.F. hex., Z.P. (73-)

1шт.

12

T53327

PACKING - vee block (73-)

2шт.

Part of seal kit P/N T63151

1шт.

13

T53320

PISTON (73-)

1шт.

14

R15366

O-RING,7/8" ID x 1" OD x 1/16"

"O" RING - 7/8" x 1" (73-)

1шт.

15

T53323

TUBE - cylinder (73-)

1шт.

16

D23962

SEAL

- oil (73-)

1шт.

Part of seal kit P/N T63151

1шт.

T63151

KIT

SEAL KIT, Includes Refs. 4, 7, 12 and 16 (73-)

1шт.
