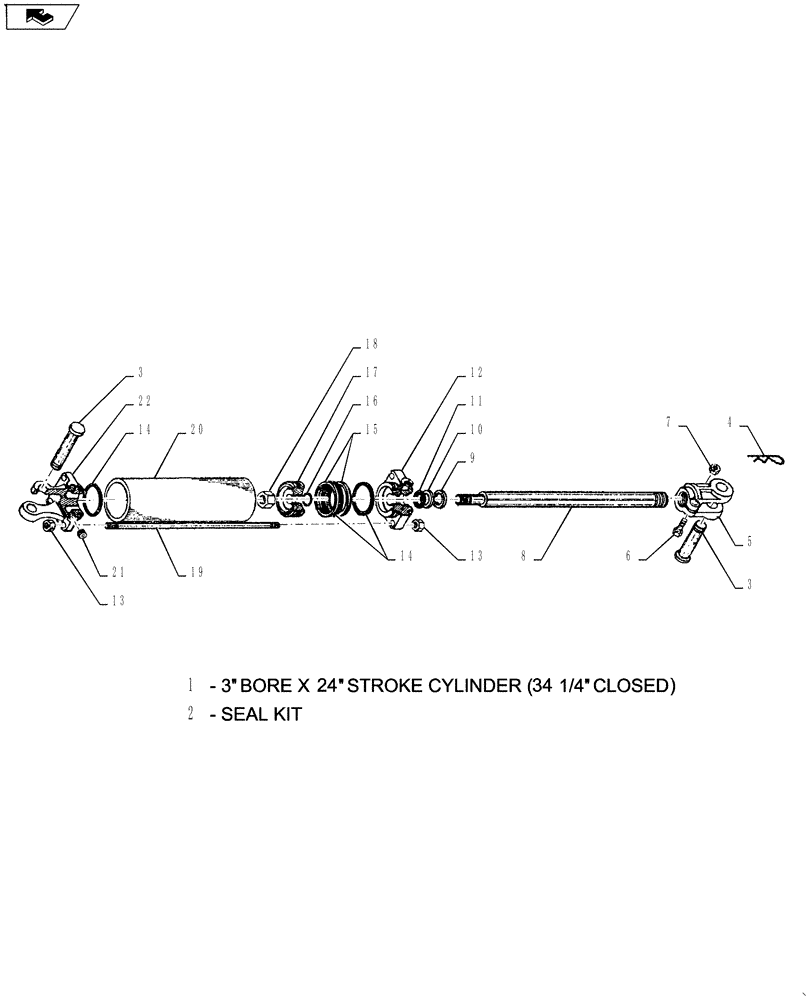

Запчасти Case IH TURBO-TIGER (35.100.06) - HYDRAULIC CYLINDER - 3" X 24" (35) - HYDRAULIC SYSTEMS

1

25030241

HYDRAULIC CYLINDER

3" x 8", 34-1/4" Closed, NPT Ports

1шт.

1

25030242

CYLINDER ASSY.

3" x 24", 34-1/4" Closed, SAE Ports

1шт.

2

25803011

KIT

Seal - 1 1/2" Ø Rod

1шт.

3

25890100

KIT

Pin, Clevis, 1" x 3", Heat Treated

1шт.

4

NSS

NOT SOLD SEPARAT

COTTER PIN, 0.188" x 2.00"

4шт.

5

25803012

CLEVIS

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1 3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803013

CYLINDER ASSY.

1 1/2" Ø Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. #2

1шт.

12

25803014

HEAD

Cylinder - 1/2" NPT Ports

1шт.

12

25803027

HEAD

Cylinder - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803515

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

Hex. Nut

1шт.

19

25803016

THREADED TIE-ROD

4шт.

20

25803017

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Plug

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803018

1/2" NPT Ports

1шт.

22

25803028

YOKE

Cylinder Base - 3/4" SAE Ports

1шт.
