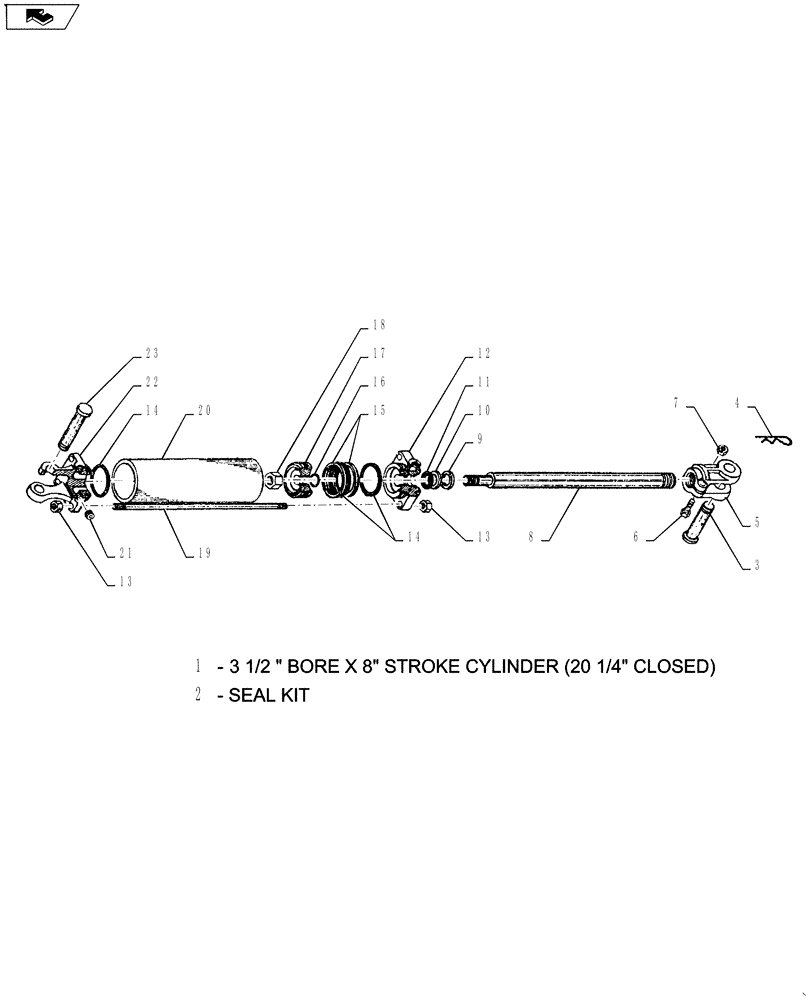

Запчасти Case IH TURBO-TIGER (35.100.03) - HYDRAULIC CYLINDER - 3-1/2" X 8" (35) - HYDRAULIC SYSTEMS

1

25035080

HYDRAULIC CYLINDER

3-1/2" x 8", 20-1/4" Closed, NPT Ports

1шт.

1

25035081

CYLINDER ASSY.

3-1/2" x 8", 20-1/4" Closed, SAE Ports

1шт.

2

25803507

KIT

Seal For 3 1/2" Bore W/1 1/4 Ø Rod

1шт.

3

25890100

KIT

Pin, Clevis, 1" x 3", Heat Treated

1шт.

4

NSS

NOT SOLD SEPARAT

COTTER PIN, 0.188" x 2.00"

2шт.

5

25803001

SHAFT

Clevis Casting, End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8 x 1 3/4 NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Lock Nut

1шт.

8

25803506

1 1/4 Ø Rod for 8" Stroke Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref.2

1шт.

12

25803522

HEAD

Cylinder - 3/4" SAE Ports

1шт.

12

25803501

SHAFT

Cylinder Head - 1/2" NPT Ports

1шт.

13

NSS

NOT SOLD SEPARAT

9/16 NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

7/8 NF Hex. Nut

1шт.

19

25803503

ROD

Tie

4шт.

20

25803504

THREADED TIE-ROD

Barrel for 3 1/2" Bore x 8" Stroke Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

21

NSS

NOT SOLD SEPARAT

1/2 NPT Pipe Plug

1шт.

22

25803505

YOKE

Cylinder Base - 1/2" NPT Ports

1шт.

22

25803523

SHAFT

Cylinder Base - 3/4" SAE Port

1шт.

23

14816241

CLEVIS PIN

1 Ø X 3 EL

1шт.
