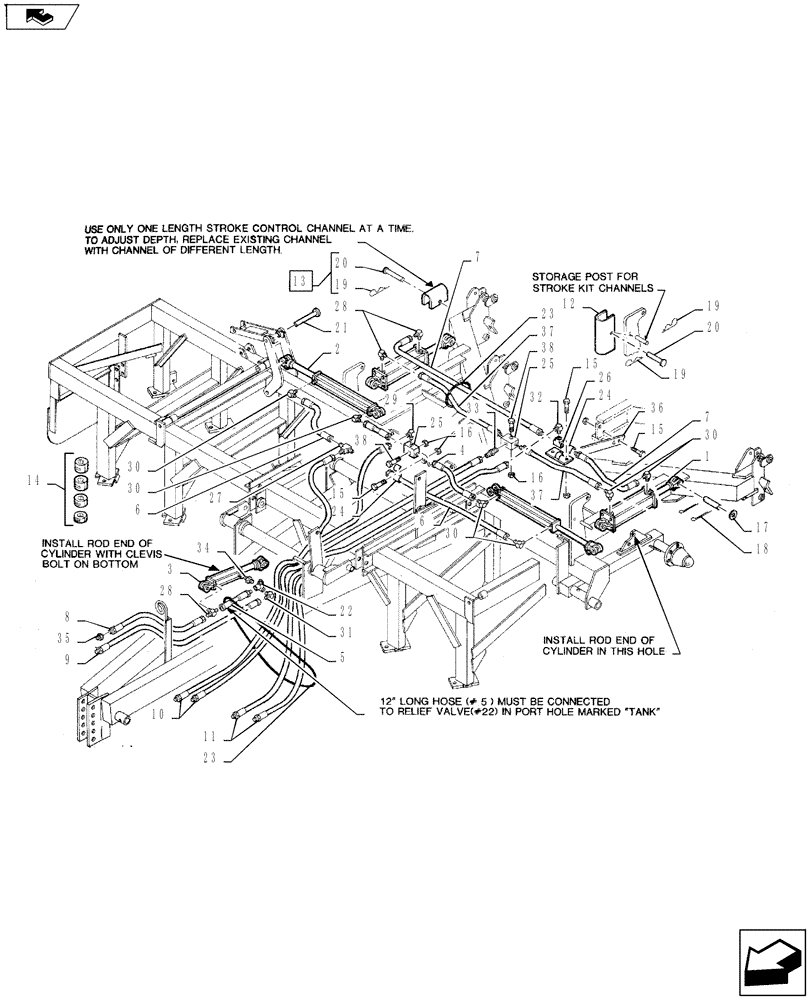

Запчасти Case IH TURBO-TIGER (35.100.01) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25030160

CYLINDER ASSY.

3" x 16" Hyd. (5 Shank)

2шт.

1

25330160R

REMAN-HYD CYLINDER

TURBO-TIGER®, II - DMI - 1985 PRODUCTION, 3" x 16" Hyd. (5 Shank), Reman for New PN 25030160

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

1

25035163

CYLINDER ASSY.

3 1/2" x 16" Hyd. (7 Shank)

2шт.

2

25030242

CYLINDER ASSY.

3" x 24" Hyd.

2шт.

3

25030082

HYDRAULIC CYLINDER

3" x 8" Hyd. (5 Shank)

2шт.

3

25035081

CYLINDER ASSY.

3 1/2" x 8" (7 Shank)

2шт.

4

25600612

HOSE

3/8" Hyd. x 12" Long

2шт.

5

25600813

HOSE ASSY.

3/8" Hyd. x 12" Long

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

2шт.

7

25600663

HOSE

3/8" x 60" Long

2шт.

8

25600687

HOSE

3/8" Hyd. x 132" Long

1шт.

9

25600685

3/8" Hyd. x 144" Long

1шт.

10

25600689

HOSE

3/8" Hyd. x 220" Long

2шт.

11

25600889

HOSE

1/2" Hyd. x 230" Long

2шт.

12

01400640

KIT

Cylinder Stop

2шт.

13

09900245

KIT

Stroke (1 1/2 Rod)

2шт.

14

25800010

CYLINDER

Stroke Kit (1 1/4 Rod - Disc Frame)

1шт.

15

NSS

NOT SOLD SEPARAT

3/8" x 1 1/4" NC Capscrew

6шт.

16

NSS

NOT SOLD SEPARAT

3/8" NC Hex Nut

6шт.

17

NSS

NOT SOLD SEPARAT

1" S.A.E. Washer

8шт.

18

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

8шт.

19

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

6шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3 1/8" EL Clevis

4шт.

21

14816525

CLEVIS PIN

1"x 6 1/2" EL

4шт.

22

25405022

VALVE PRESSURE RELIE

1шт.

23

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic

3шт.

24

22530601

HOSE CLAMP

Double

2шт.

25

25401253

FLOW DIVIDER

White

2шт.

26

15050371

TEE

3/8" NPTF

1шт.

27

25707518

3 WAY CONNECTION

3/4" JICM Tee

1шт.

28

25707522

3 WAY CONNECTION

(2) 3/4" JICM x 3/4" SAEM Tee

1шт.

29

25707511

ELBOW

3/4" JICM x 1/2" SAEM

1шт.

30

25707521

ELBOW

3/4" JICM x 3/4" SAEM

8шт.

31

25707528

ELBOW

7/8" SAEM x 3/4" JICM

1шт.

32

25707529

ELBOW

7/8" JICM x 3/8" NPTM

1шт.

33

25708808

ADAPTER

7/8" JICM x 1/2" NPTM

1шт.

34

25707526

FITTING

3/4" SAEM x 7/8" SAEM Adapter

1шт.

35

15030503

ADAPTER

3/8" NPTF x 1/2" NPTM

1шт.

36

09962700

FLOW DIVIDER

Brkt. (Turbo Tiger II)

1шт.

37

25600656

HOSE

3/8" Hyd. x 55" Long

2шт.

38

NSS

NOT SOLD SEPARAT

3/8'' x 2" NC Capscrew

2шт.
