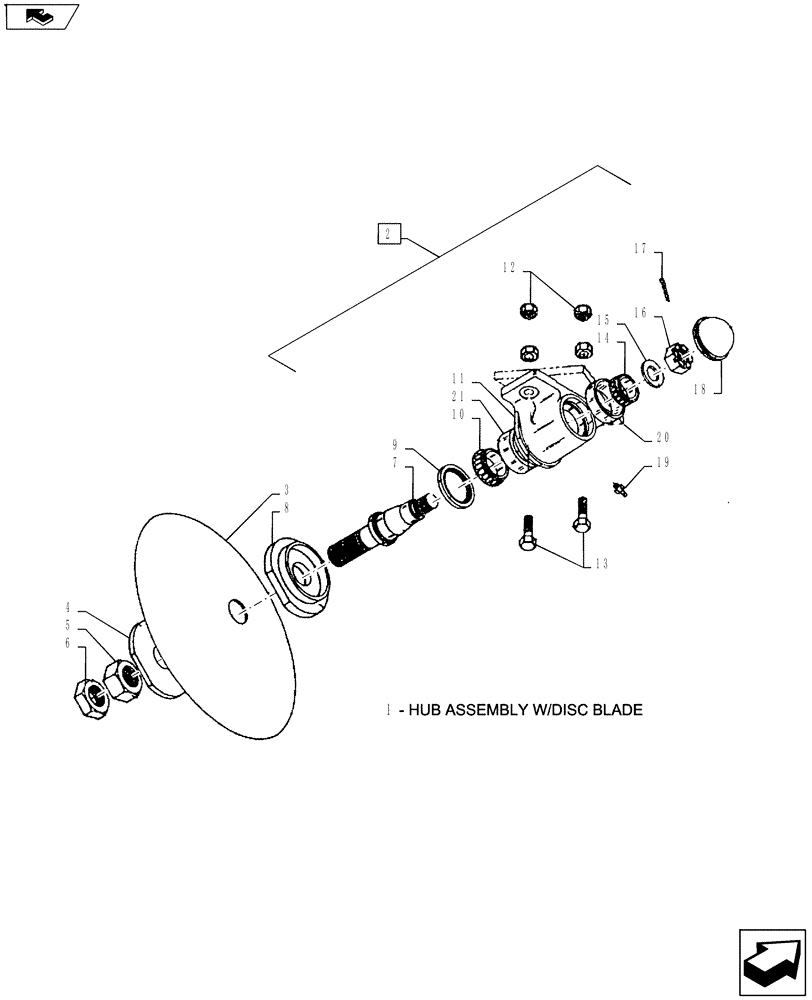

Запчасти Case IH TURBO-TIGER (75.200.02) - DISC HUB ASSEMBLY (44) - WHEELS

1

09942000

HUB ASSY.

W/Disc Blade-LH

1шт.

1

09942000

HUB ASSY.

W/Disc Blade-RH

1шт.

2

28001000

HUB ASSY.

LH, Includes Ref .9-12,16-21

1шт.

2

28002000

HUB ASSY.

RH, lncludes Ref. 9-12,16-21

1шт.

3

33552412

TILLAGE BLADE

24" Disc

1шт.

4

09904020

WASHER

Outside

1шт.

5

14002800

NUT

1 3/4" NC Hex

1шт.

6

14032800

LOCK NUT

1 3/4" NC Jam

1шт.

7

28890001

SPINDLE

W/Bearings

1шт.

8

09904100

SPINDLE

Inside Washer

1шт.

9

21932750

SEAL

2.75 ID (CR #531108)

1шт.

In an emergency, Chicago Rawhide #27394 may be substituted for this seal.

1шт.

10

21872165

BEARING

2.165 ID Cone (Timken #JLM506848E)

1шт.

11

28701000

BAR ASSY.

Hub LH, Includes Ref. 22 & 23

1шт.

11

28702000

HUB ASSY.

RH, Includes Ref. 22 & 23

1шт.

12

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

4шт.

13

16014125

BOLT

7/8 x 3 NC Hex Gd. 5

2шт.

14

21871800

BEARING CONE

1.796 ID (Timken #25590)

1шт.

15

17421020

GROMMET

1 1/4" Special Washer

1шт.

16

NSS

NOT SOLD SEPARAT

1 1/4" NF Slotted Nut

1шт.

17

NSS

NOT SOLD SEPARAT

7/32 x 2" Cotter Pin

1шт.

18

28480320

DUST CAP

Hub

1шт.

19

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

20

21883270

BEARING CUP

3.265 OD (Timken #25520)

1шт.

21

21883541

BEARING, CUP

3.543 OD (Timken #JLM 506810)

1шт.
