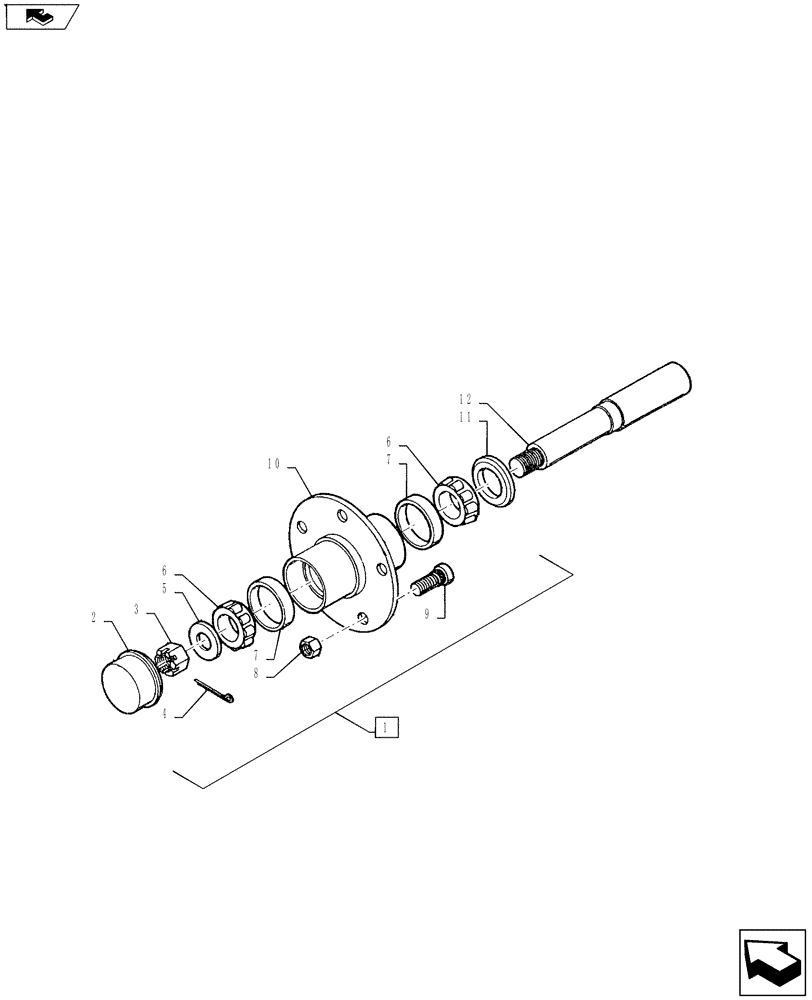

Запчасти Case IH TURBO-TIGER (44.100.04) - STABILIZER WHEEL HUB ASSEMBLY (44) - WHEELS

1

28122250

HUB ASSY.

5-Bolt

1шт.

2

28480330

DUST CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

3/4 NF Slotted Nut

1шт.

4

NSS

NOT SOLD SEPARAT

1/8 x 1 1/2 Cotter Pin

1шт.

5

NSS

NOT SOLD SEPARAT

3/4 SAE Washer

1шт.

6

21872170

BEARING CONE

1.06" Bore Dico #8019

2шт.

7

21883690

BEARING CUP

2.00" OD Dico #8017

2шт.

8

14080802

NUT

1/2" NF Wheel

5шт.

9

16408055

ROLLER CAGE BEARING

1/2" NF Drive-In Stud

5шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

21931275

SEAL

1.25" ID x 2.00" OD Dico #8998

1шт.

12

NSS

NOT SOLD SEPARAT

Spindle

1шт.

13

28022230

HUB

Spindle Assy. (Not Shown)

1шт.
