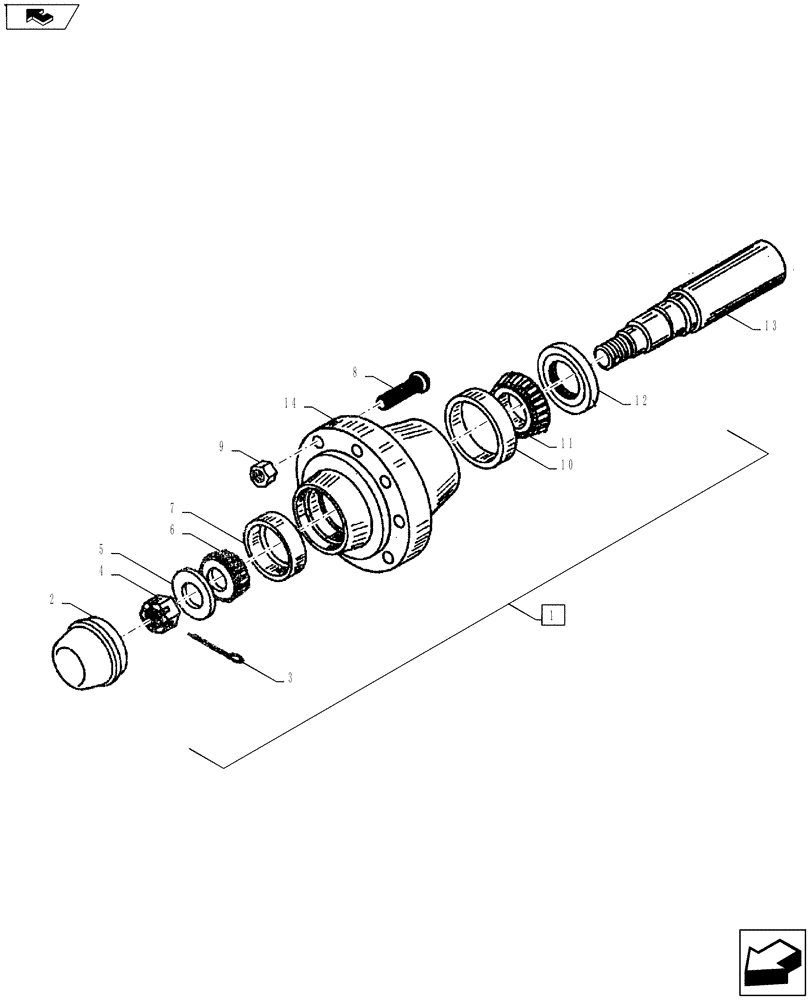

Запчасти Case IH TURBO-TIGER (44.100.03) - 819 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28681900

HUB ASSY.

Q-819 8-Bolt

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32 x 1 1/2 Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8 SAE Washer

1шт.

6

21871310

BEARING CONE

1.31 Bore Timken #2790

1шт.

7

21883000

BEARING, CUP,76.2125 mm OD x 23.9135 mm

3.00 OD Timken #2720

1шт.

8

16409093

STUD

9/16 x 2 1/2 Wheel

8шт.

9

14080903

SPECIAL NUT

9/16 x 18 Wheel

8шт.

10

21883670

CUP

3.67 OD Timken #3720

1шт.

11

21872000

BEARING, CONE

2.00 Bore Timken #3780

1шт.

12

21932500

SEAL

2.50 ID x 3.75 OD CR #375W216-MI

1шт.

13

28382111

CONCAVE

Spindle

1шт.

14

28781900

HUB ASSY.

1шт.

15

28581921

HUB ASSY.

Spindle (Not Shown)

1шт.
