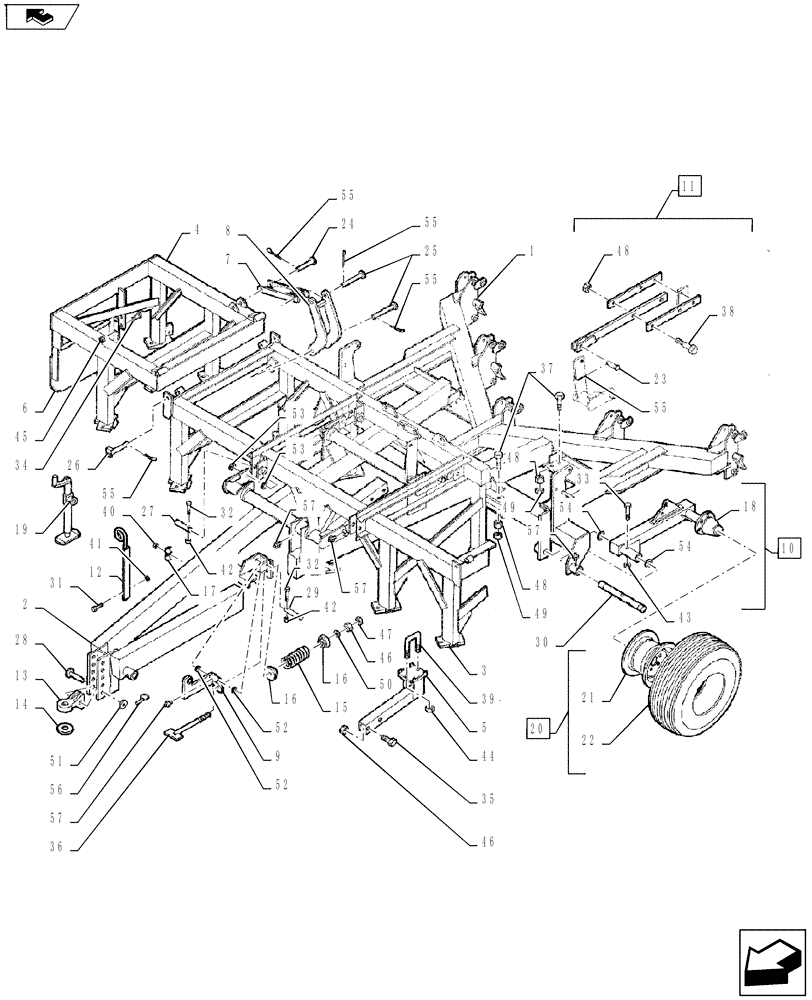

Запчасти Case IH TURBO-TIGER (39.100.01) - FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

09961600

FRAME

Main - 5 Shank

1шт.

1

09961700

FRAME

Main - 7 Shank

1шт.

2

09959000

1шт.

3

09960000

FRAME

Disc - 5 Shank

1шт.

3

09960200

FRAME

Disc - 7 Shank

1шт.

4

09960300

FRAME

Disc Wing RH

1шт.

4

09960400

FRAME

Disc Wing LH

1шт.

5

09960900

MOUNTING PARTS

Center Brace

1шт.

6

09960500

SHIELD

Dirt RH

1шт.

6

09960600

SHIELD

Dirt LH

1шт.

7

09962000

LINK/SHACKLE

2шт.

8

09962300

ARM

2шт.

9

09959600

LINK/SHACKLE

1шт.

10

09961200

ARM

Spindle RH 5 Shank

1шт.

10

09961500

ARM

Spindle RH 7 Shank

1шт.

10

09961300

ARM

Spindle LH 5 Shank

1шт.

10

09961400

ARM

Spindle LH 7 Shank

1шт.

11

09900190

LINK/SHACKLE

45" Assy.

1шт.

12

04615000

BRACKET

Hose Support

1шт.

13

20092071

ADJUSTABLE CLEVIS

1шт.

14

09524000

WASHER

Wear Spacer

1шт.

15

24156203

SPRING

Compression

1шт.

16

20090050

HOLDER

Spring Casting

2шт.

17

22530601

HOSE CLAMP

Double

2шт.

18

28277800

HUB ASSY.

778 (5 Shank)

2шт.

18

28781900

HUB ASSY.

819 (7 Shank)

2шт.

19

32252000

JACK ASSY.

5000 LB

1шт.

20

10111166

LAND WHEEL

16.1 x W11C

2шт.

20

10111166

LAND WHEEL

16.1 x W11C

2шт.

21

10111166

LAND WHEEL

11 X 16 8 Hole

2шт.

22

11016166

WHEEL

16.5 L X 16.1 6 Ply Tire

2шт.

22

11016170

TYRE/TIRE

16.5 L x 16.1, 10 Ply

2шт.

23

14816180

HEADED PIN

1" Dia. X 2 7/32" El Clevis

2шт.

24

14816426

CLEVIS

1" Dia. X 5 1/4" El Pin

2шт.

25

14816525

CLEVIS PIN

1" Dia. X 6 1/2" El

4шт.

26

14816685

CLEVIS

1" Dia. X 8 1/2" El Pin

4шт.

27

14892041

PIN

1 1/4" Dia. X 5" Lg

4шт.

28

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1 1/4" Dia. X 5 1/2" El

1шт.

29

14892049

PIN

1 1/4" Dia. X 6 1/4" Lg

1шт.

30

14826994

SPECIAL PIN

1 5/8" Dia. X 17 7/8" Lg - 5 Shank

2шт.

30

09308000

ROD ASSY.

2" Dia. X 18 1/2" Lg Pin -7 Shank

2шт.

31

NSS

NOT SOLD SEPARAT

3/8" X 1" NC Cap Screw

2шт.

32

16007105

BOLT

7/16" X 2 1/2" NC GD 5

5шт.

33

16008125

BOLT

1/2" X 3" NC GD 5 (5 Shank)

2шт.

33

16008135

BOLT

1/2" X 3 1/4" NC GD 5 (7 Shank)

2шт.

34

16010067

BOLT

5/8" X 1 1/2" NF GD 5

8шт.

35

16012085

BOLT

3/4" X 2" NC GD 5

4шт.

36

16901271

BOLT

3/4" NC 16" Lg

1шт.

37

16014115

BOLT

7/8" X 2 3/4" NC GD 5

8шт.

38

16014125

BOLT

7/8" X 3" NC GD 5

2шт.

39

16310050

U-BOLT

5/8" X 4" X 8"

1шт.

40

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

2шт.

41

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Nut

2шт.

42

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Loc Nut

5шт.

43

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Loc Nut

2шт.

44

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

45

NSS

NOT SOLD SEPARAT

5/8" NP Hex. Nut

8шт.

46

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

5шт.

47

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

1шт.

48

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

10шт.

49

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Jam Nut

8шт.

50

NSS

NOT SOLD SEPARAT

3/4" STD Washer

1шт.

51

17421021

WASHER

1 1/4" Heavy

1шт.

52

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1 1/4" X 14 Ga. Machine

2шт.

53

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1 1/4" X 10 Ga. Machine

8шт.

54

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1 5/8" X 14 Ga. Machine

4шт.

54

17632020

BUSHING

2" X 10 Ga. Machine

4шт.

55

NSS

NOT SOLD SEPARAT

1/4" X 2" Lg Cotter Pin

12шт.

56

14710814

SMALL PIN

1/4" X 1 3/4" Lg Klik

1шт.

57

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Zerk

13шт.
