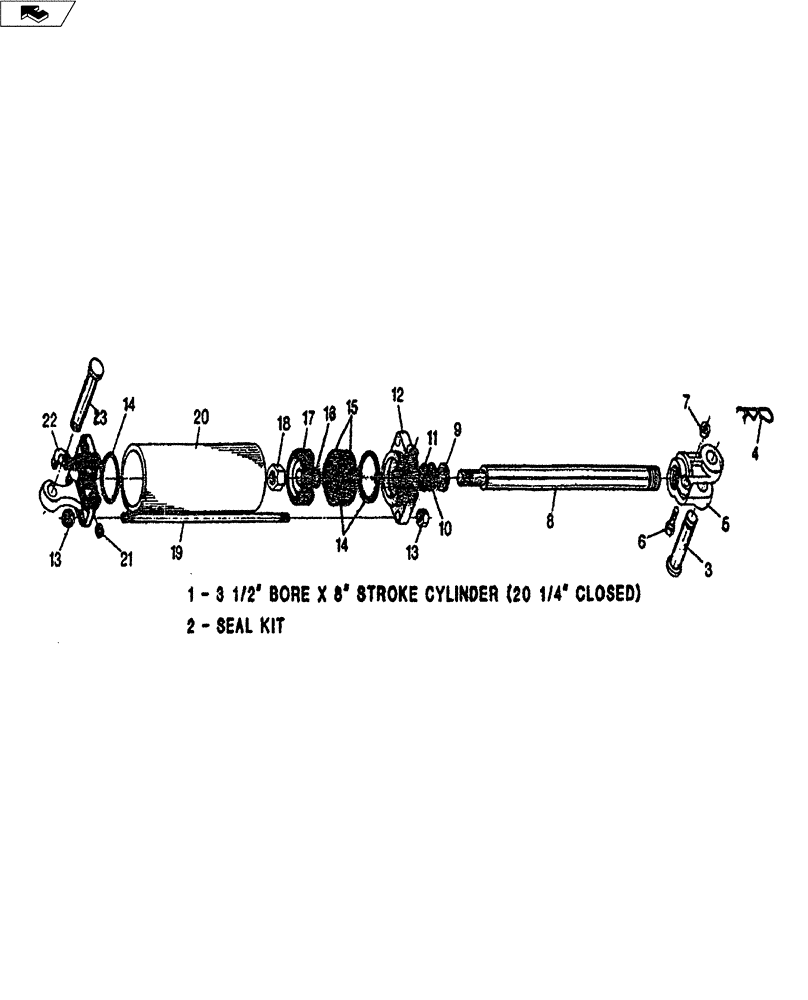

Запчасти Case IH TURBO-TIGER (35.100.04) - HYDRAULIC CYLINDER - 3-1/2" X 8" (35) - HYDRAULIC SYSTEMS

1

25035080

HYDRAULIC CYLINDER

3-1/2" x 8"- NPT Ports

1шт.

1

25035081

CYLINDER ASSY.

3-1/2" x 8"- SAE Ports

1шт.

2

25803507

KIT

Seal for 3-1/2" Bore W/ 1-1/4" Rod

1шт.

3

25890100

KIT

1" Cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" #11 Hair Pin

2шт.

5

25803001

SHAFT

Clevis Casting, Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" X 1-3/4" NC Hex.,Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803506

1-1/4" for 8" Stroke Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal,See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer,See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring,See Ref. 2

1шт.

12

25803522

HEAD

Cylinder - 3/4" SAE Ports

1шт.

12

25803501

SHAFT

Cylinder Head - 1/2" NPT Ports

1шт.

13

NSS

NOT SOLD SEPARAT

9/16" NF Hex.,Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring,See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal,See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring,See Ref. 2

1шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

7/8" NF Hex. Nut

1шт.

19

25803503

ROD

Tie

4шт.

20

25803504

THREADED TIE-ROD

Barrel For 3-1/2" Bore x 8" Stroke Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25803505

YOKE

Cylinder Base - 1/2" NPT Ports

1шт.

22

25803523

SHAFT

Cylinder Base - 3/4" SAE Port

1шт.

23

25890100

KIT

1" Cylinder

1шт.
