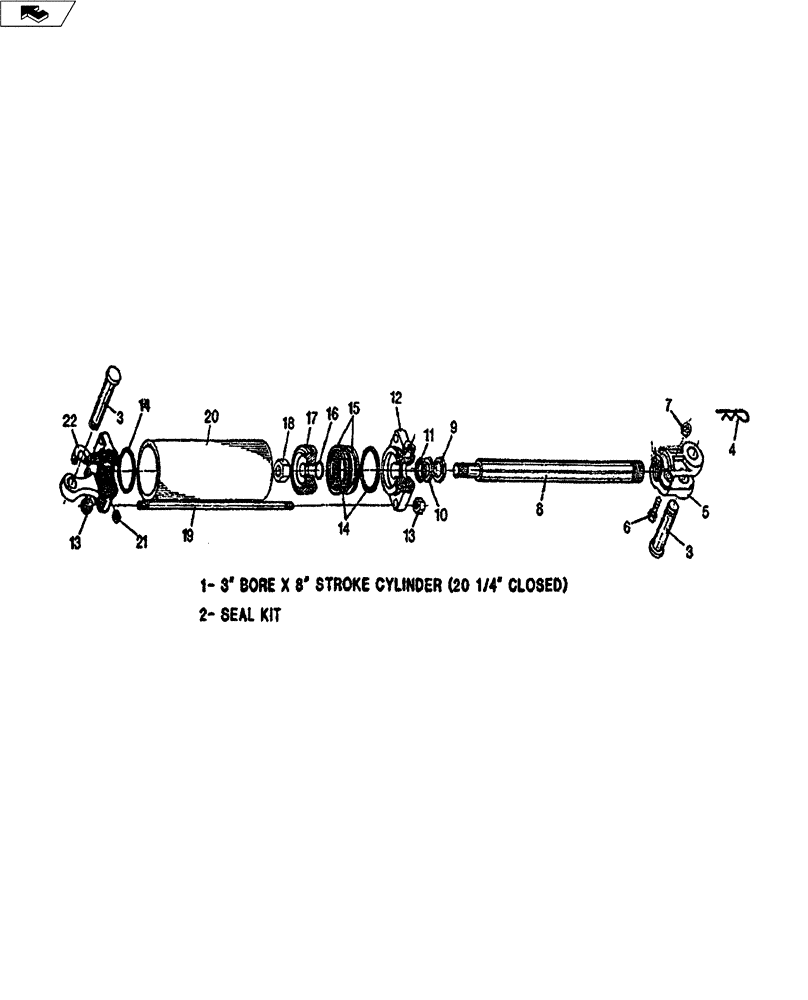

Запчасти Case IH TURBO-TIGER (35.100.03) - HYDRAULIC CYLINDER - 3" X 8" (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8" - NPT ports

1шт.

1

25030082

HYDRAULIC CYLINDER

3" x 8"- SAE Ports

1шт.

2

25803007

KIT

Seal- 1-1/4" Rod

1шт.

3

25890100

KIT

1" x 2-3/4" E.L. Clevis Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

5

25803001

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" X 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802503

1-1/4"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal,See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up washer,See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25803002

1/2" NPT Ports

1шт.

12

25803029

SHAFT

3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex.,Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring,See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal,See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring,See Ref. 2

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803004

THREADED TIE-ROD

4шт.

20

25803005

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Plug

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803006

YOKE

Cylinder Base - 1/2" NPT Ports

1шт.

22

25803026

SHAFT

Cylinder Base - 3/4" SAE Ports

1шт.
