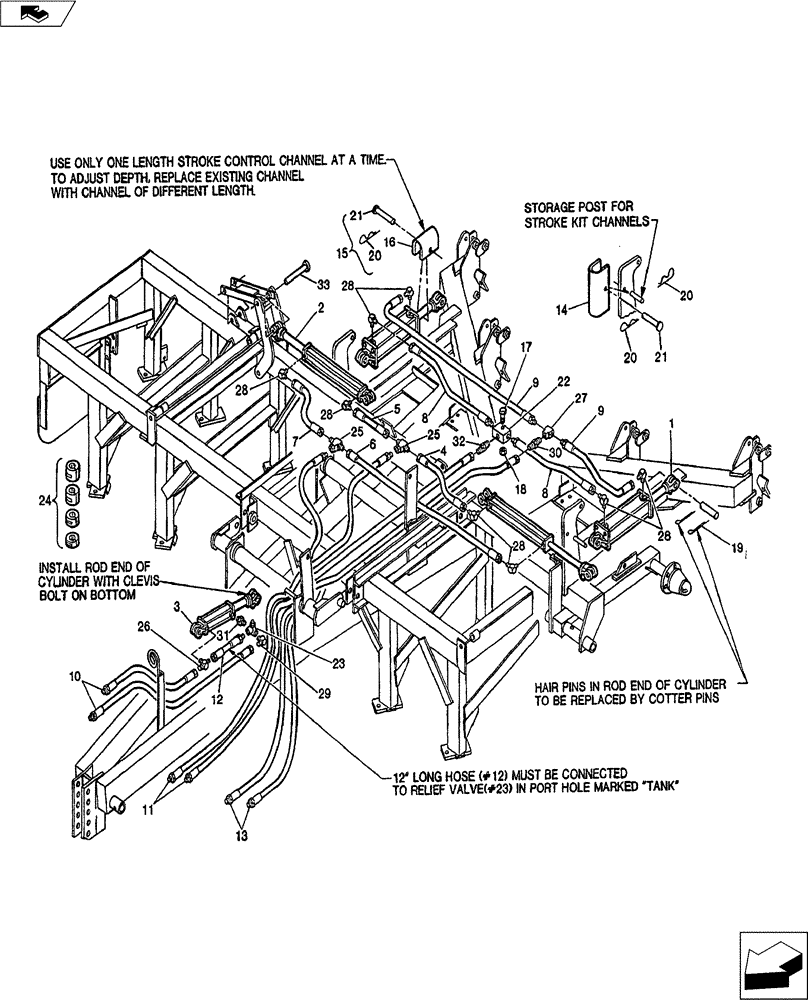

Запчасти Case IH TURBO-TIGER (35.100.02) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25035163

CYLINDER ASSY.

3-1/2" x 16" Hyd.,(7 Shank)

2шт.

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16" (5 Shank)

2шт.

1

25330160R

REMAN-HYD CYLINDER

TURBO-TIGER®, II - DMI, 3" x 16" (5 Shank)

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

2

25030242

CYLINDER ASSY.

3" x 24" Hyd.

2шт.

3

25035081

CYLINDER ASSY.

3-1/2" X 8" Hyd.(7 Shank)

1шт.

3

25030082

HYDRAULIC CYLINDER

3" x 8" (5 Shank)

1шт.

4

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

Long

1шт.

5

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

Long

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

Long

1шт.

7

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

Long

1шт.

8

25600665

HOSE

3/8" Hyd., x 66" Long

2шт.

9

25600682

HOSE

3/8" Hyd., x 88" Long

1шт.

10

25610718

HYDRAULIC HOSE

3/8" x 178" Long

2шт.

11

25610721

HOSE ASSY.

3/8" Hyd.,x 266" Long

2шт.

12

25600813

HOSE ASSY.

1/2" Hyd.,x 12" Long

1шт.

13

25600895

HOSE

1/2" Hyd.,x 300" Long

2шт.

14

01400640

KIT

Cylinder Stop

2шт.

15

09900240B

KIT

Stroke, Includes Ref. 16, 20-21

1шт.

16

09962400

CHANNEL

1-1/2" Lg.

2шт.

16

09962410

CHANNEL

2" Lg.

2шт.

16

09962420

CHANNEL

2-1/2" Lg.

1шт.

16

09962430

CHANNEL

3" Lg.

2шт.

16

09962440

CHANNEL

3-1/2" Lg.

2шт.

16

09962450

CHANNEL

4" Lg.

2шт.

16

09962460

CHANNEL

4-1/2" Lg.

2шт.

17

NSS

NOT SOLD SEPARAT

7/16" x 2" Capscrew

1шт.

18

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

19

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

4шт.

20

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin ZP

6шт.

21

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" EI Clevis

4шт.

22

25401253

FLOW DIVIDER

(Paint White)

1шт.

23

25405022

VALVE PRESSURE RELIE

600 PSI

1шт.

24

25800010

CYLINDER

1-1/4" Stroke Control Kit

1шт.

25

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

JICM,ICF

2шт.

26

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM,SAEM

1шт.

27

217-1162

TEE,3/8"-18 Female

NPTF

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM,SAEM

8шт.

29

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

SAEM,JlCM

1шт.

30

25707525

ADAPTER

7/8" JICM x 3/8" NPTM

1шт.

31

25707526

FITTING

3/4" SAEM x 7/8" SAEM Adpt.

1шт.

32

25708808

ADAPTER

7/8" JICM x 1/2" NPTM

1шт.

33

14816525

CLEVIS PIN

1" Dia x 6-1/2" EI

4шт.
