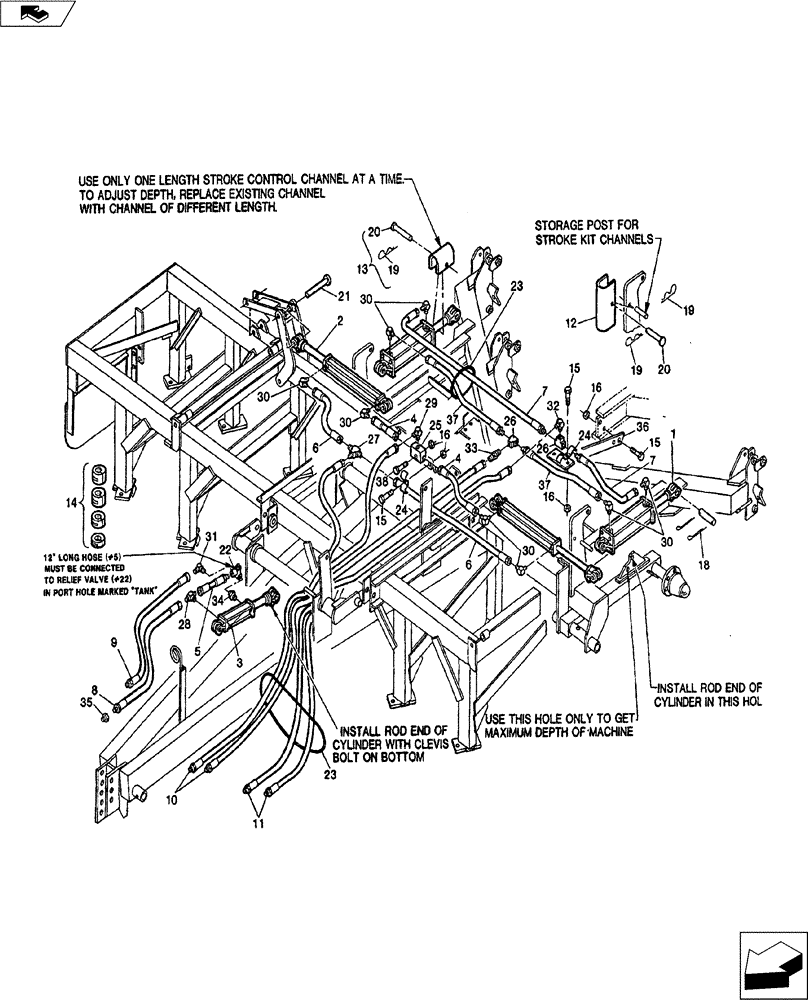

Запчасти Case IH TURBO-TIGER (35.100.01) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 13" (5 shank)

2шт.

1

25330160R

REMAN-HYD CYLINDER

TURBO-TIGER®, II - DMI, 3" x 13" (5 shank)

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

1

25035163

CYLINDER ASSY.

3-1/2" x 16" Hyd.,(7 Shank)

2шт.

2

25030242

CYLINDER ASSY.

3" x 24" Hyd.

2шт.

3

25030082

HYDRAULIC CYLINDER

3" x 8" (5 Shank)

1шт.

3

25035081

CYLINDER ASSY.

3-1/2" x 8 Hyd.,(7 Shank)

1шт.

4

25600612

HOSE

3/8" Hyd. x 13-1/2" Lg(7 shank only)

2шт.

5

25600813

HOSE ASSY.

3/8" Hyd. x 12" Lg

1шт.

6

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

2шт.

7

25600663

HOSE

3/8" Hyd. x 60" Lg

2шт.

8

25600687

HOSE

3/8" Hyd. x 132" Lg

1шт.

9

25600685

3/8" x 144" Lg

1шт.

10

25600689

HOSE

3/8" Hyd. x 220" Lg (7 Shank only)

2шт.

11

25600889

HOSE

1/2" Hyd. x 230" Lg

2шт.

12

01400640

KIT

Cylinder Stop

2шт.

13

09900245

KIT

Stroke (1-1/2" Rod)

2шт.

14

25800010

CYLINDER

Stroke Kit (1-1/4" Rod - Disc Frame)

1шт.

15

NSS

NOT SOLD SEPARAT

3/8" X 1-1/4" NC Capscrew

6шт.

16

NSS

NOT SOLD SEPARAT

3/8" NC Hex.,Nut

5шт.

18

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

8шт.

19

NSS

NOT SOLD SEPARAT

1/8" X 2" Hair Pin

6шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" EI Clevis

4шт.

21

14816525

CLEVIS PIN

1" x 6-1/2" EI

4шт.

22

25405022

VALVE PRESSURE RELIE

1шт.

23

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic

3шт.

24

22530601

HOSE CLAMP

Double

6шт.

25

25401253

FLOW DIVIDER

(White)

1шт.

26

217-1162

TEE,3/8"-18 Female

NPTF

2шт.

27

218-594

TEE,3/4"-16, 37 Degree

JICM

1шт.

28

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM,SAEM

1шт.

29

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

JICM,SAEM

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM,SAEM

8шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

SAEM,JICM

1шт.

32

25707529

ELBOW

7/8" JICM x 3/8" NPTM

1шт.

33

25708808

ADAPTER

7/8" JICM x 1/2" NPTM

1шт.

34

25707526

FITTING

3/4" SAEM x 7/8" SAEM Adpt.

1шт.

35

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

NPTF,NPTM Adpt.

1шт.

36

09962700

FLOW DIVIDER

(Turbo Tiger II)

1шт.

37

25600656

HOSE

3/8" Hyd.,x

2шт.

38

NSS

NOT SOLD SEPARAT

3/8 x 2" NC Capscrew

1шт.
