Запчасти Case IH TURBO-TIGER (75.200.04) - 4" COVERING ATTACHMENT (58) - ATTACHMENTS/HEADERS

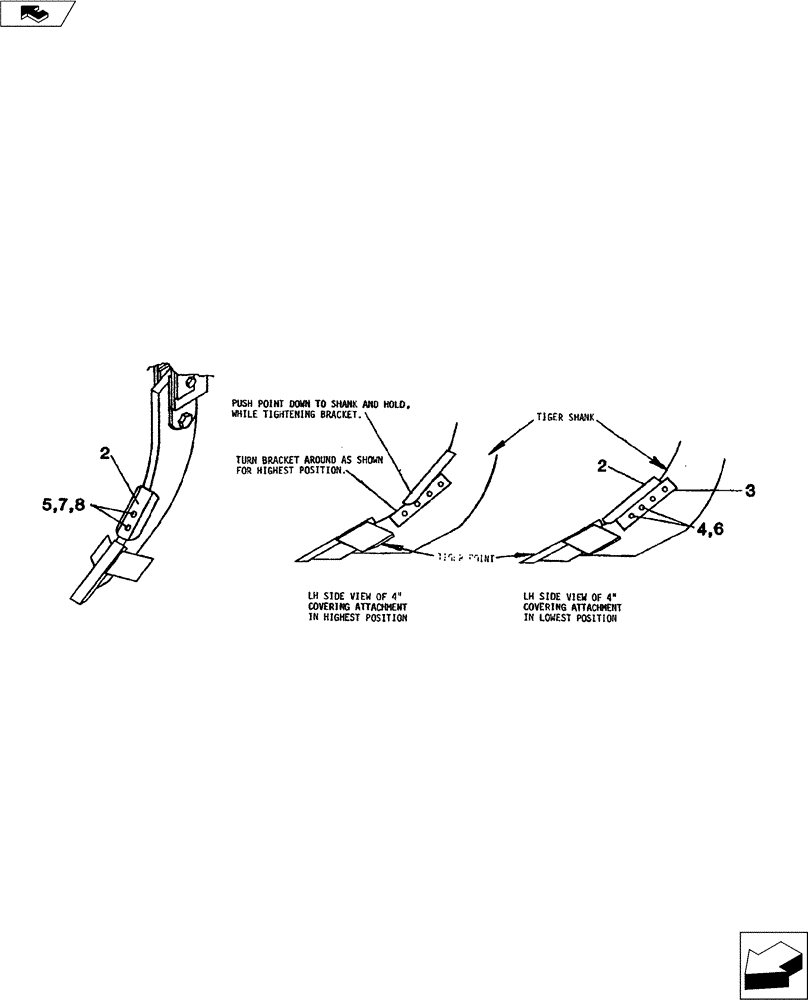

Схема запчастей Case IH TURBO-TIGER - (75.200.04) - 4" COVERING ATTACHMENT (58) - ATTACHMENTS/HEADERS
2
2
4,6
5,7,8
3

Артикул

Название

Примечание

Количество

1

09990040

MOLDBOARD

4" Covering Attachment Kit Complete (Not Shown)

1шт.

2

33310076

LANDSIDE

4" Covering Point With Hardware

1шт.

3

09965000

BRACKET

1шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

2шт.

5

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

NC

2шт.

6

NSS

NOT SOLD SEPARAT

1/2" NC Hex.,Nut

2шт.

7

NSS

NOT SOLD SEPARAT

7/16" NC Hex.,Nut

2шт.

8

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

2шт.

Выбрано товаров: 8
