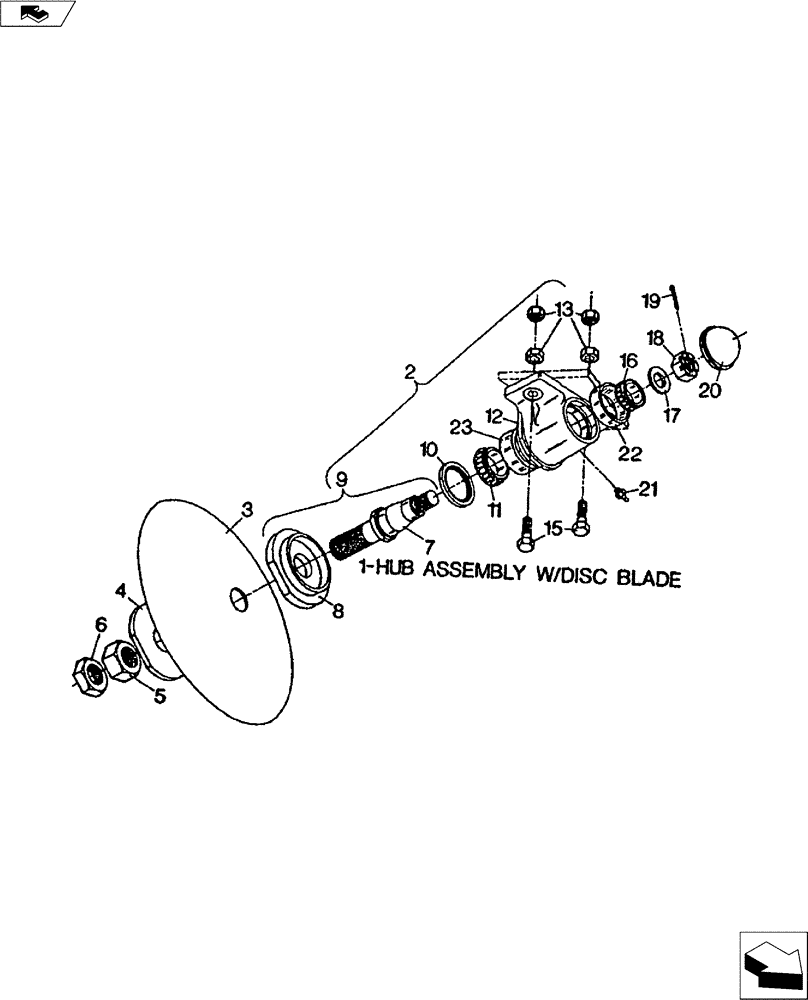

Запчасти Case IH TURBO-TIGER (44.100.05) - DISC HUB ASSEMBLY (44) - WHEELS

1

09942000

HUB ASSY.

W/Disc Blade-LH

1шт.

1

09942000

HUB ASSY.

W/Disc Blade-RH

1шт.

2

28003000

HUB ASSY.

LH,Includes Ref. 9-12, 16-21

1шт.

2

28003000

HUB ASSY.

RH, Includes Ref. 9-12, 16-21

1шт.

3

443639A1

PLOW DISC

24" Blade

1шт.

4

09904020

WASHER

Outside

1шт.

5

425-1628

NUT,1 3/4"-5, G5, Hvy

1-3/4" NC Hex.

1шт.

6

14032800

LOCK NUT

1-34" NC Jam

1шт.

7

09904100

SPINDLE

Requires No. 11 and 16

1шт.

8

09904100

SPINDLE

Inside Washer

1шт.

9

09904101

SPINDLE

Washer, Includes Ref. 7,8,11,16

1шт.

10

21932750

SEAL

2.75 ID CR 531108

1шт.

11

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165 ID Cone Timken JLM506848E

1шт.

12

28703000

HUB ASSY.

LH, Includes Ref. 22 - 23

1шт.

12

28703000

HUB ASSY.

RH, Includes Ref. 22 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

4шт.

15

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

NC Hex.

2шт.

16

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.796 ID Timken 25590

1шт.

17

17421020

GROMMET

1-1/4" Special Washer

1шт.

18

NSS

NOT SOLD SEPARAT

1-1/4" NF Slotted Nut

1шт.

19

NSS

NOT SOLD SEPARAT

7/32" x 2" Cotter Pin

1шт.

20

28480320

DUST CAP

Hub

1шт.

21

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

22

130503H

BEARING CUP

3.265 OD Timken 25520

1шт.

23

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.543 OD Cup Timken JLM506810

1шт.
