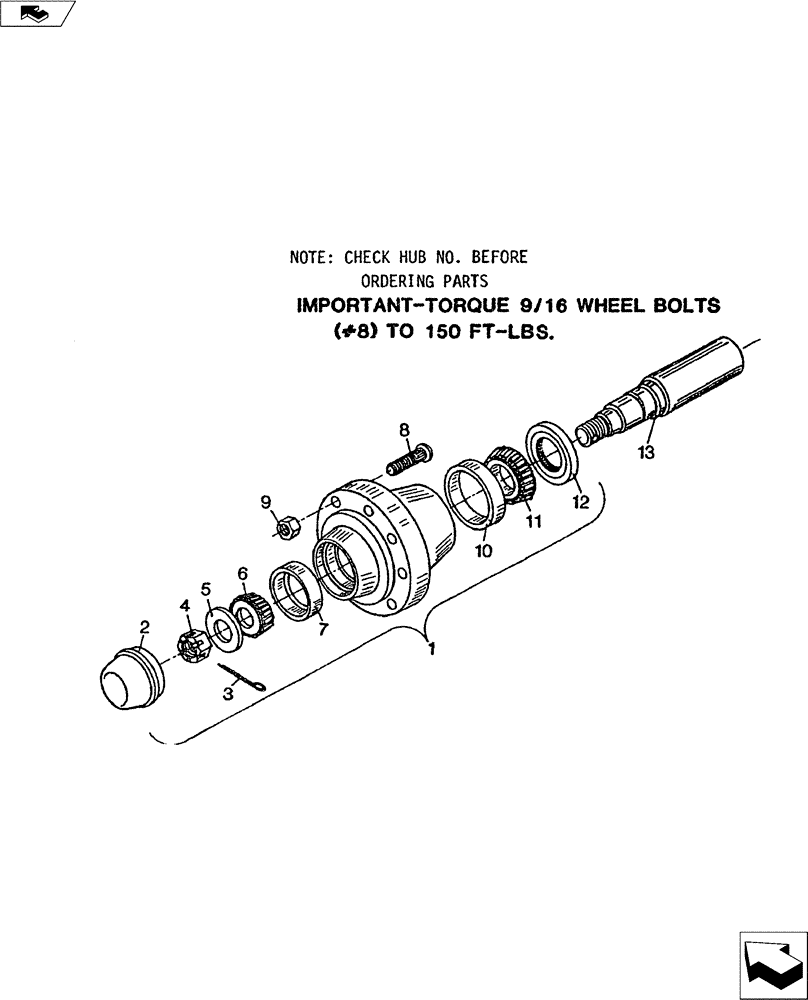

Запчасти Case IH TURBO-TIGER (44.100.03) - 819 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28681900

HUB ASSY.

Q-819 8-Bolt

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

B32159

EXCITER

1.31 Bore Cone Timken 2790

1шт.

7

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00 OD Timken 2720

1шт.

8

16409093

STUD

9/16" x 2/12" Wheel Bolt

8шт.

9

14080903

SPECIAL NUT

9/16" x 18" Wheel

8шт.

10

21883670

CUP

3.67 OD Timken 3720

1шт.

11

21872000

BEARING, CONE

2.00 Bore Timken 3780

1шт.

12

820095C91

SEAL

2.50 ID X 3.75 OD CR #375W216-MI

1шт.

13

28382111

CONCAVE

Spindle

1шт.

14

28781900

HUB ASSY.

(Not shown)

1шт.

15

28581921

HUB ASSY.

Spindle (Not shown)

1шт.
