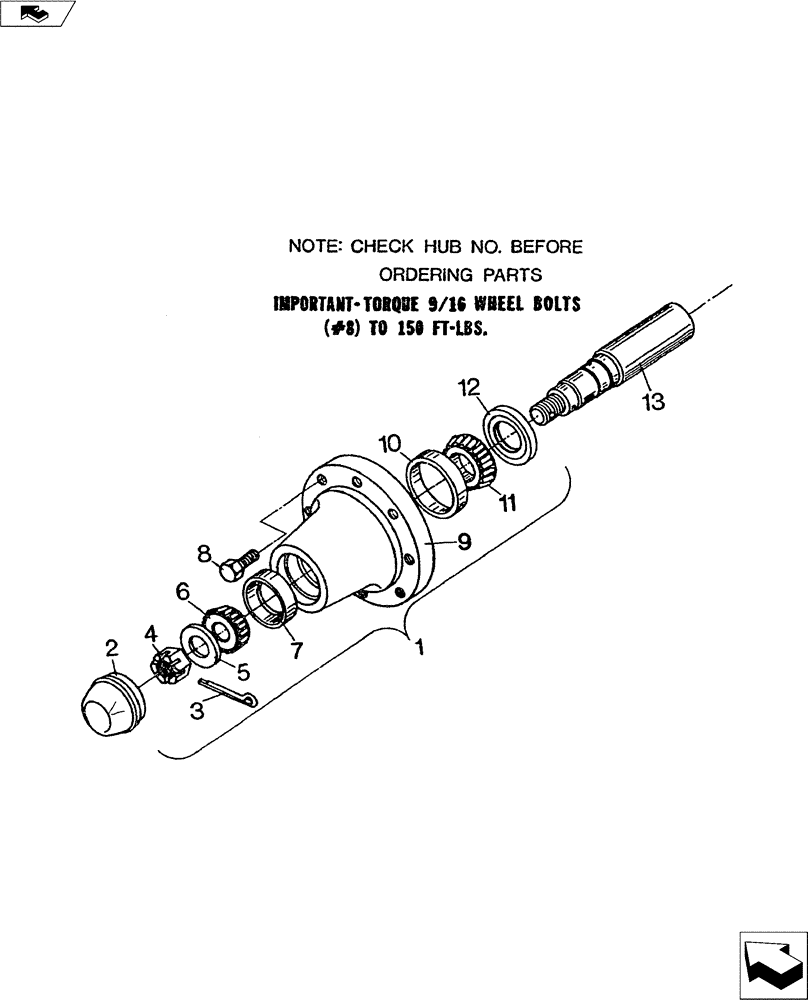

Запчасти Case IH TURBO-TIGER (44.100.02) - 778 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28177800

HUB ASSY.

Q778 8-Bolt

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38" Bore Timken 25877

1шт.

7

165964R1

BEARING CUP

2.875" O.D.Timken 25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

8шт.

9

NSS

NOT SOLD SEPARAT

Q778 8-Bolt Hub Only

1шт.

10

130503H

BEARING CUP

3.27" O.D. Cup Timken 25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80" Bore Cone Timken 25590

1шт.

12

491715R91

OIL SEAL

2.00" ID x 3.63" OD CR 521430

1шт.

13

28377801

SPINDLE

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle

1шт.

14

28077811

HUB ASSY.

Spindle -Straight (Not shown)

1шт.
