(44.100.01) - STABILIZER WHEEL 7 SHANK ONLY

Запчасти Case IH TURBO-TIGER (44.100.01) - STABILIZER WHEEL 7 SHANK ONLY (44) - WHEELS

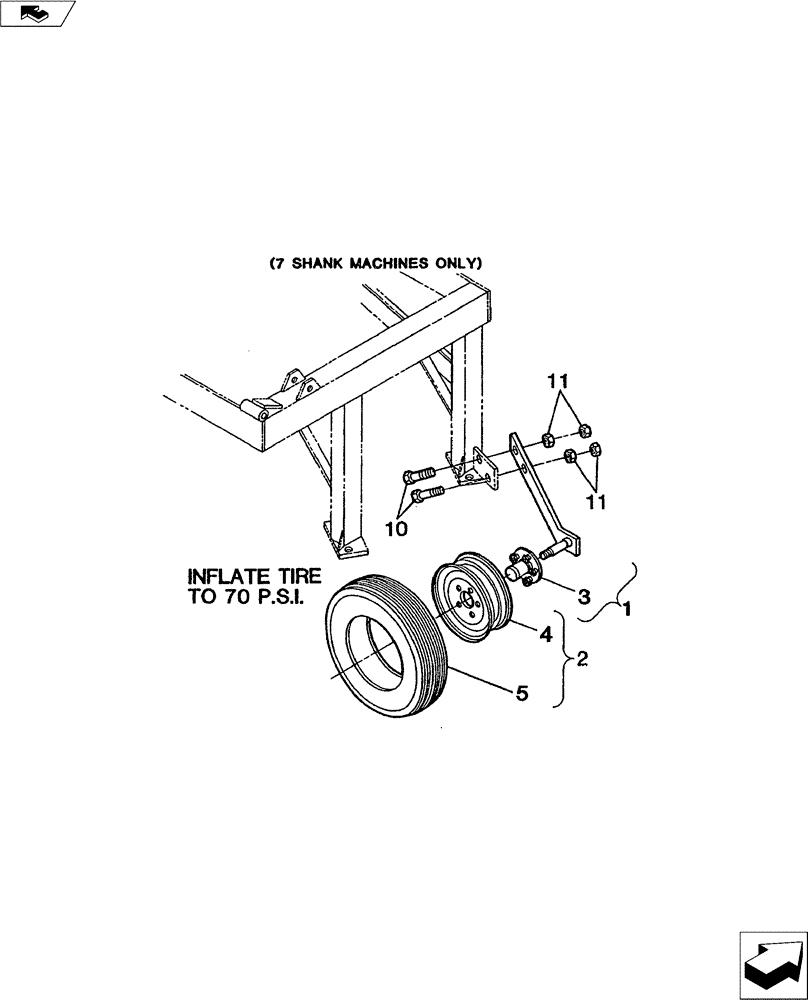

Схема запчастей Case IH TURBO-TIGER - (44.100.01) - STABILIZER WHEEL 7 SHANK ONLY (44) - WHEELS
1
4
10
3
11
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09960700

ARM

Spindle W/Hub, Includes Ref. 3

1шт.

2

10004121

WHEEL ASSY

4.80" x 12" Tire, Includes Ref. 4-5

1шт.

3

28122250

HUB ASSY.

5-Bolt

1шт.

4

10104120

WHEEL

4" x 12" 5 Hole

1шт.

5

NSS

NOT SOLD SEPARAT

4.80" x 12" Tire

1шт.

10

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

NC

2шт.

11

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut Gd. 2

4шт.
