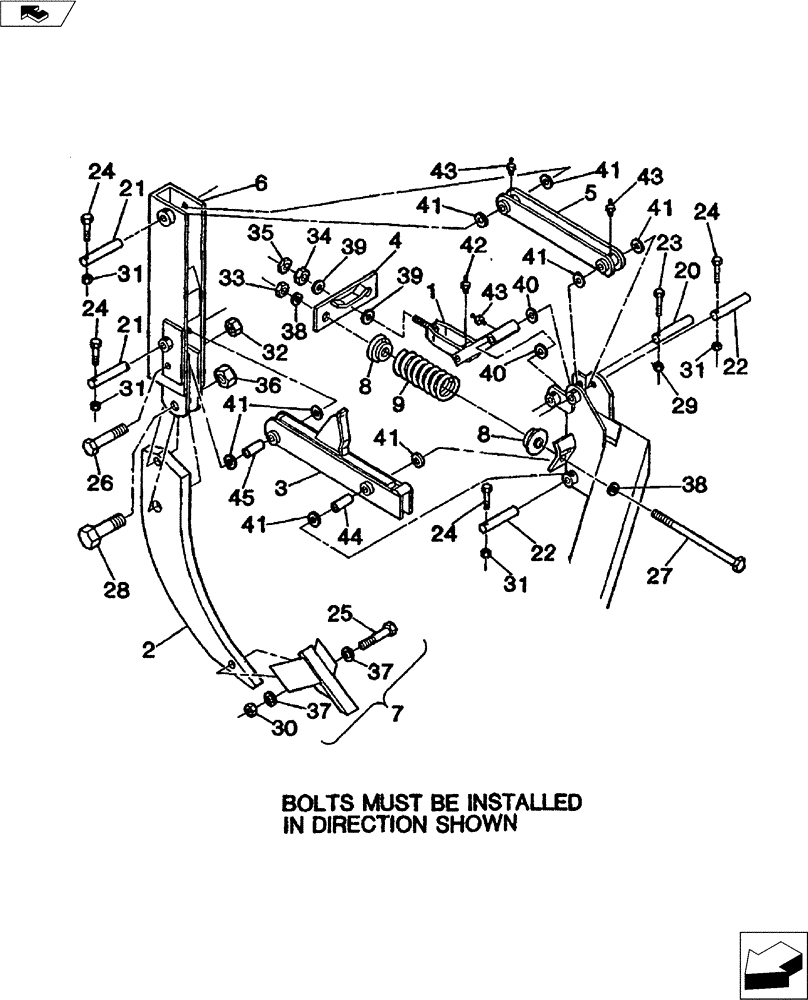

Запчасти Case IH TURBO-TIGER (75.200.03) - AUTO RESET ASSEMBLY (84 PRODUCTION) (39) - FRAMES AND BALLASTING

1

09960800

LINKAGE

Roller

1шт.

2

09961103

SHANK

H.S.

1шт.

3

09961801

LINK

Lower W/Bushings

1шт.

4

09961900

BRACKET

Top Spring Holder

1шт.

5

09962101

LINK

Upper

1шт.

6

09962200

BRACKET

A/R Upright

1шт.

7

09907000

POINT

Tiger Bundle

1шт.

8

20090090

SPRING BOX

Holder Casting

4шт.

9

24162501

COIL SPRING

Compression

2шт.

20

14891659

SPECIAL PIN

1" Dia. x 7-5/16"L g.

1шт.

21

14892045

SPECIAL PIN,31.75mm OD x 158.75mm L

1-1/4" Dia. x 6-1/4" Lg.

2шт.

22

14892055

SPECIAL PIN

1-1/4" Dia. x 7" Lg.

2шт.

23

NSS

NOT SOLD SEPARAT

3/8 X 2" NC Capscrew

1шт.

24

NSS

NOT SOLD SEPARAT

7/16 x 2-1/2" NC Capscrew

4шт.

25

NSS

NOT SOLD SEPARAT

7/16 "x 2-3/4" NC Capscrew

1шт.

26

16012241

CAPSCREW

3/4" x 6" NC Hex.,Bolt Gd. 2

1шт.

27

16901272

BOLT

3/4" x 20" NC Hex.

2шт.

28

16902416

SPECIAL BOLT

1-1/2" x 4" NC Hex.

1шт.

29

NSS

NOT SOLD SEPARAT

3/8" NC Hex.,Lock Nut

1шт.

30

NSS

NOT SOLD SEPARAT

7/16 "NC Hex.,Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex.,Lock Nut

4шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex.,Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex.,Lock Nut

2шт.

34

NSS

NOT SOLD SEPARAT

7/8" NC Hex.,Nut

1шт.

35

NSS

NOT SOLD SEPARAT

7/8" NC Hex,Jam Nut

1шт.

36

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

NC Hex.

1шт.

37

NSS

NOT SOLD SEPARAT

7/16" Std, Washer

2шт.

38

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

4шт.

39

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" 1/4" Thick

2шт.

40

17616020

WASHER

1" Dia. Machined Bushing 14 Ga.

2шт.

41

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Dia. Machined 14 Ga.

1шт.

42

NSS

NOT SOLD SEPARAT

1 /4" - 28" Straight Zerk

2шт.

43

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Zerk

3шт.

44

44012502

BUSHING

3-3/8" Lg.

1шт.

45

44012503

BUSHING,34.92mm ID x 38.73mm OD x 73.15mm L

2-7/8" Lg.

1шт.
