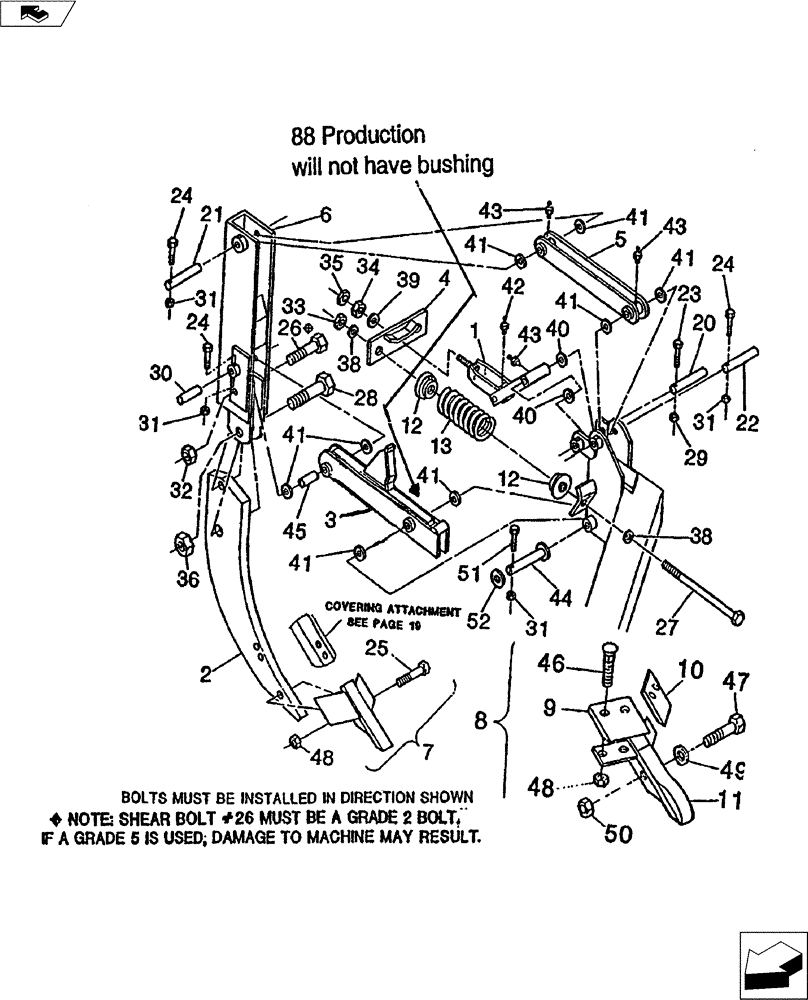

Запчасти Case IH TURBO-TIGER (75.200.01) - AUTO RESET ASSEMBLY (87 PRODUCTION) (39) - FRAMES AND BALLASTING

1

09960800

LINKAGE

Roller

1шт.

2

09961103

SHANK

H.S.

1шт.

3

09961801

LINK

Lower W/Bushings

1шт.

4

09961900

BRACKET

Top Spring Holder

1шт.

5

09962101

LINK

Upper

1шт.

6

09962200

BRACKET

A/R Upright

1шт.

7

09907000

POINT

Tiger Assy.

1шт.

8

09907010

POINT

Tiger Assy.

1шт.

9

09907002

FRAME

R.H. Wing, Includes Ref. 9, 46, 48

1шт.

10

09907003

FRAME

L.H. Wing, Includes Ref. 10, 46, 48

1шт.

11

09907010

POINT

Tiger, Includes Ref. 11, 47-49

1шт.

12

20090090

SPRING BOX

Holder Casting

4шт.

13

24162501

COIL SPRING

Compression

2шт.

20

14891659

SPECIAL PIN

1" Dia x 7-5/16" Lg

1шт.

21

14892045

SPECIAL PIN,31.75mm OD x 158.75mm L

1-1/4" Dia. X 5-5/8" Lg

2шт.

22

14892055

SPECIAL PIN

1-1/4" Dia x 7" Lg

1шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

NC

1шт.

24

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

NC

4шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

1шт.

26

16012241

CAPSCREW

3/4" x 6" NC Hex. Gd. 2

1шт.

27

16901272

BOLT

3/4" x 20" NC Hex.

2шт.

28

16902416

SPECIAL BOLT

1-1/2" x 4" NC Hex.

1шт.

29

NSS

NOT SOLD SEPARAT

3/8" NC Hex Loc Nut

1шт.

30

14892053

SPECIAL PIN

1-1/4" Dia x 5-5/8 Lg

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex.,Loc Nut

4шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex.,Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex.,Loc Nut

2шт.

34

NSS

NOT SOLD SEPARAT

7/8" NC Hex.,Nut

1шт.

35

NSS

NOT SOLD SEPARAT

7/8" NC Hex.,Jam Nut

1шт.

36

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

NC Hex.

1шт.

37

NSS

NOT SOLD SEPARAT

7/16" Std. Washer (Not Shown)

2шт.

38

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

4шт.

39

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" 1/4" Thick

1шт.

40

17616020

WASHER

1" Dia. Machine Bushing 14 Ga.

2шт.

41

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Dia. Machine 14 Ga.

1шт.

41

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Dia. Machine 10 Ga.

1шт.

42

NSS

NOT SOLD SEPARAT

1/4" - 28 Straight Zerk

2шт.

43

NSS

NOT SOLD SEPARAT

1/8 " NPT Straight Zerk

3шт.

44

14820631

CLEVIS

1-1/4" Dia. X 7" Lg.

1шт.

45

44012503

BUSHING,34.92mm ID x 38.73mm OD x 73.15mm L

2-7/8" Lg.

1шт.

46

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" Plow Bolt

4шт.

47

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

48

NSS

NOT SOLD SEPARAT

1/2" NC Hex.,Nut

1шт.

49

NSS

NOT SOLD SEPARAT

1/2" Std.,Washer

1шт.

50

NSS

NOT SOLD SEPARAT

1/2" NC Heavy Nut

1шт.

51

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

NC

1шт.

52

17421021

WASHER

1-1/4" Heavy

1шт.
