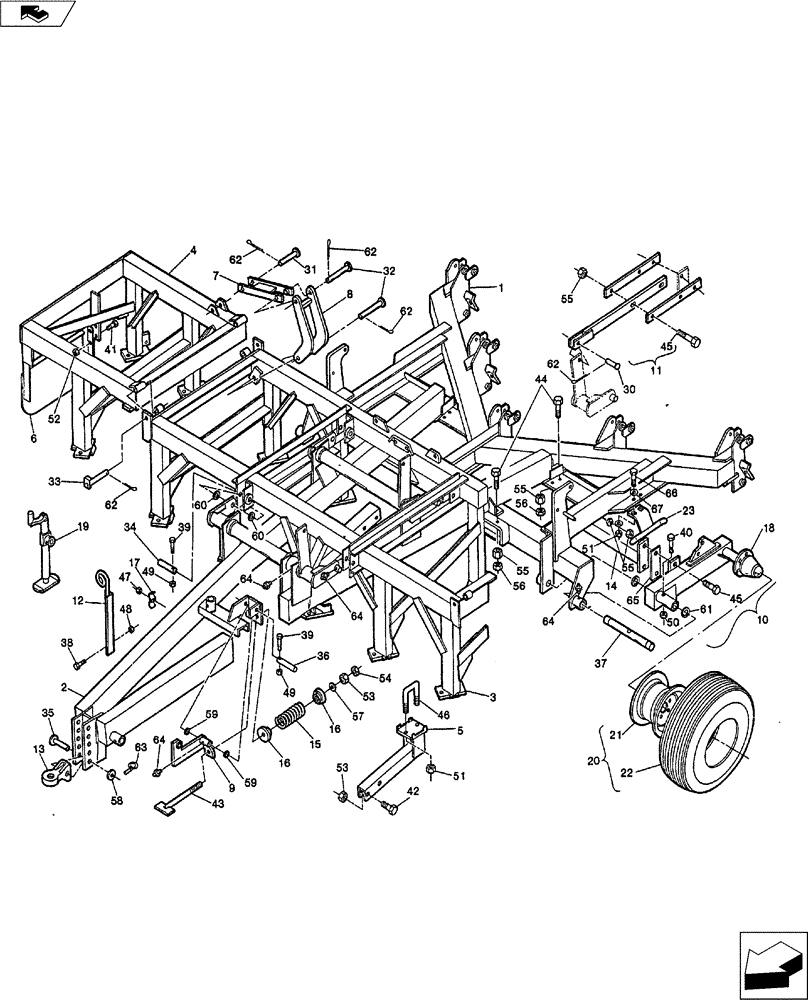

Запчасти Case IH TURBO-TIGER (39.100.01) - FRAME ASSEMBLY WITH OPTIONAL TIRE SCRAPER (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
09961600
FRAME
Main - 5 Shank
1шт.
1
09961700
FRAME
Main - 7 Shank
1шт.
2
09900100
FRAME
Pull Assy.
1шт.
3
09960000
FRAME
Disc - 5 Shank
1шт.
3
09960200
FRAME
Disc - 7 Shank
1шт.
4
09960300
FRAME
Disc Wing RH
1шт.
4
09960400
FRAME
Disc Wing LH
1шт.
5
09960900
MOUNTING PARTS
Center Brace
1шт.
6
09960500
SHIELD
Dirt RH
1шт.
6
09960600
SHIELD
Dirt LH
1шт.
7
09962000
LINK/SHACKLE
2шт.
8
09962300
ARM
2шт.
9
09959600
LINK/SHACKLE
Assy.
1шт.
10
09961200
ARM
Spindle RH 5 Shank
1шт.
10
09962800
BRACKET
Spindle Arm RH 7 Shank
1шт.
10
09961300
ARM
Spindle LH 5 Shank
1шт.
10
09962900
BRACKET
Spindle Arm LH 7 Shank
1шт.
11
09900190
LINK/SHACKLE
45" Linkage Assembly,Includes Ref 45
1шт.
12
04615000
BRACKET
Hose Support
1шт.
13
20092071
ADJUSTABLE CLEVIS
1шт.
14
09961310
TUBE
Torque
1шт.
15
24162501
COIL SPRING
Compression
1шт.
16
20090090
SPRING BOX
Holder Casting
2шт.
17
22530601
HOSE CLAMP
Double
2шт.
18
28177800
HUB ASSY.
778 (5 Shank)
2шт.
18
28681900
HUB ASSY.
819 (7 Shank)
2шт.
19
32252000
JACK ASSY.
Swivel
1шт.
20
10111166
LAND WHEEL
16.5 L x 16.1 6 Ply Tire & Assy.,(5 Shank)
2шт.
20
10111166
LAND WHEEL
16.5 L x 16.1 8 Ply Tire & Assy.,(7 Shank),Includes Ref 21-22
2шт.
21
10111166
LAND WHEEL
11 x 16 8-Hole
2шт.
22
11016166
WHEEL
11 x 16 8-Hole
2шт.
22
11016170
TYRE/TIRE
16.5 L x 16.1 8 Ply
2шт.
23
09900805
SCRAPER
Tire (Optional)
2шт.
24
09900800
SCRAPER
Kit, Optional (Not Shown)
1шт.
30
14816180
HEADED PIN
1" Dia. x 2-7/32'' El Clevis
2шт.
31
14816426
CLEVIS
1" Dia. x 5-1/4" El Pin
2шт.
32
14816525
CLEVIS PIN
1" Dia. x 6-1/2" El
1шт.
33
14816685
CLEVIS
1" Dia x 8-1/2" El Pin
1шт.
34
14892041
PIN
1-1/4" Dia X 5" Lg
4шт.
35
14820445
CLEVIS PIN,31.75mm OD x 160.27mm L
1-1/4" Dia x 5-1/2" El
1шт.
36
14892049
PIN
1-1/4" Dia x 6-1/4" Lg.
1шт.
37
14826994
SPECIAL PIN
1-5/8" Dia x 17-7/8" Lg.,5 Shank
2шт.
38
NSS
NOT SOLD SEPARAT
3/8" X 1" NC Cap Screw
2шт.
39
413-740
BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5
NC
5шт.
40
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
NC (5 Shank)
2шт.
41
16010067
BOLT
5/8" x 1-1/2" NF Gd.,5
8шт.
42
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
NC
4шт.
43
16901273
BOLT
3/4" NC 20-1/4" Lg.
1шт.
44
413-1444
BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5
NC
8шт.
45
413-1448
BOLT,Hex, 7/8" - 9 x 3", Gr 5
NC
6шт.
46
16310050
U-BOLT
5/8" x 4" x 8"
1шт.
47
NSS
NOT SOLD SEPARAT
5/16" NC Hex.,Nut
2шт.
48
NSS
NOT SOLD SEPARAT
3/8" NC Hex.,Nut
2шт.
49
NSS
NOT SOLD SEPARAT
7/16" NC Hex.,Lock Nut
5шт.
50
NSS
NOT SOLD SEPARAT
1/2" NC Hex.,Lock Nut
2шт.
51
NSS
NOT SOLD SEPARAT
5/8" NC Hex.,Nut
6шт.
52
NSS
NOT SOLD SEPARAT
5/8" NF Hex.,Nut
8шт.
53
NSS
NOT SOLD SEPARAT
3/4" NC Hex Nut
5шт.
54
NSS
NOT SOLD SEPARAT
3/4" NC Hex.,Jam Nut
1шт.
55
NSS
NOT SOLD SEPARAT
7/8" NC Hex.,Nut
18шт.
56
NSS
NOT SOLD SEPARAT
7/8" NC Jam Nut
8шт.
57
NSS
NOT SOLD SEPARAT
3/4" Std Washer
1шт.
58
17421021
WASHER
1-1/4" Heavy
1шт.
59
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4" X 14 Ga.,Machine
2шт.
60
17620030
WASHER,32.15mm ID x 47.63mm OD x 10mm Thk
1-1/4" x 10 Ga.,Machine
8шт.
61
17627010
WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk
1-5/8" x 14 Ga.,Machine
4шт.
61
17632020
BUSHING
2" x 10 Ga.,Machine
4шт.
62
NSS
NOT SOLD SEPARAT
Cotter Pin
12шт.
63
A30338
PIN
1/4" x 1-3/4" Lg Klik
1шт.
64
NSS
NOT SOLD SEPARAT
1/8" NPT Straight Zerk
13шт.
65
09961530
SHIM
0.12 Thick
1шт.
66
NSS
NOT SOLD SEPARAT
5/8" NC Hex.,Nut Gd.,2
4шт.
67
17411012
WASHER
11/16" ID x 1-3/4" OD x .250
8шт.
Выбрано товаров: 73
