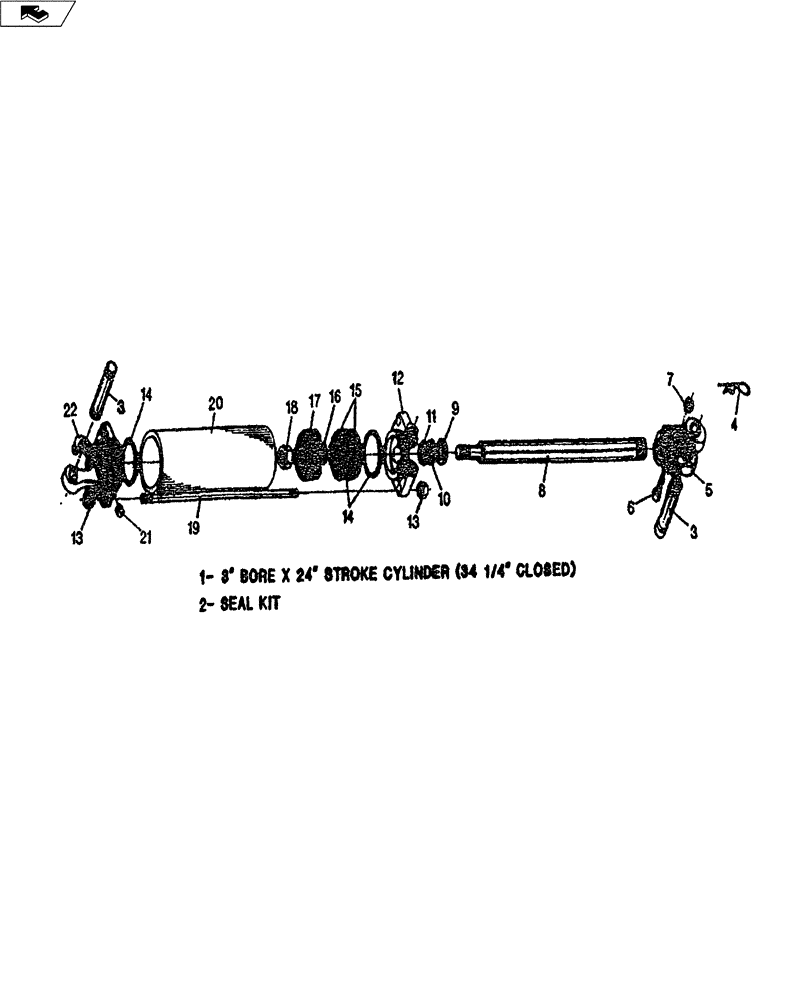

Запчасти Case IH TURBO-TIGER (35.100.07) - HYDRAULIC CYLINDER - 3" X 24" (35) - HYDRAULIC SYSTEMS

1

25030241

HYDRAULIC CYLINDER

3" x 24" NPT Ports

1шт.

1

25030242

CYLINDER ASSY.

3" x 24" SAE Ports

1шт.

2

25803011

KIT

Seal - 1-1/2" Rod

1шт.

2

25803035

KIT

Seal - 1-1/2" Rod (Rockford)

1шт.

3

25890100

KIT

1" x 2-3/4" E.L. Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

4шт.

5

25803012

CLEVIS

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex.,Lock Nut

1шт.

8

25030242

CYLINDER ASSY.

1-1/2" Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25803014

HEAD

Cylinder Head - 1/2" NPT Ports

1шт.

12

25803027

HEAD

Cylinder Head - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Piston (Lantex)

1шт.

17

25330160R

REMAN-HYD CYLINDER

TURBO-TIGER®, II - DMI, 3" X 24", Piston (Lantex)

1шт.

17

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

17

25803003

SHAFT

Piston (Rockford)

1шт.

18

NSS

NOT SOLD SEPARAT

Hex.,Nut

1шт.

19

25003016

THREADED TIE-ROD

4шт.

20

25003017

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Plug

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803018

1/2" NPT Ports

1шт.

22

25803028

YOKE

Cylinder Base - 3/4" SAE Ports

1шт.
