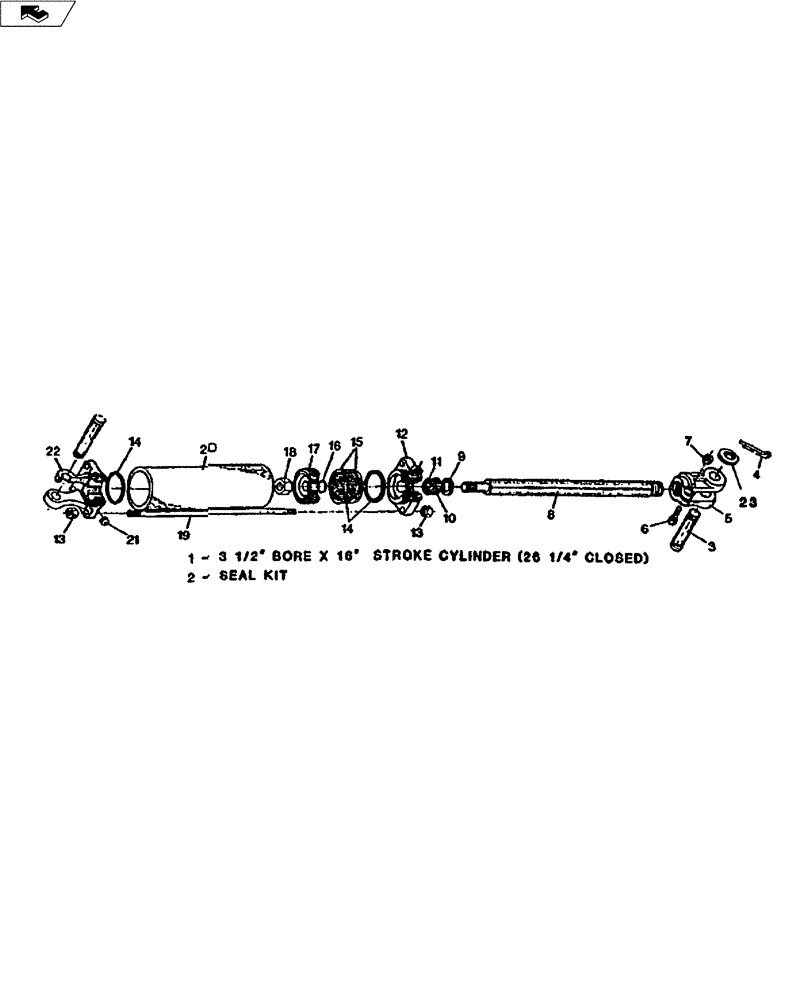

Запчасти Case IH TURBO-TIGER (35.100.06) - HYDRAULIC CYLINDER - 3-1/2" X 16" (35) - HYDRAULIC SYSTEMS

1

25035163

CYLINDER ASSY.

3-1/2" x 16" SAE Ports

1шт.

2

25803526

KIT

Seal (Rockford)

1шт.

2

25803514

KIT

Seal (Lantex)

1шт.

3

25890100

KIT

1" x 2-3/4" E.L. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

3/16" X 2" Cotter Pin

4шт.

5

25803012

CLEVIS

(Lantex)

1шт.

5

25804057

SHAFT

Clevis (Rockford)

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803528

THREADED TIE-ROD

1-1/2" Rod (Rockford)

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately) See Ref. #2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately) See Ref. #2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. #2

1шт.

12

25803529

SHAFT

Cylinder Head-3/4" SAE Ports (Rockford)

1шт.

12

25803524

HEAD

Cylinder -3/4" SAE Ports (Lantex)

1шт.

13

NSS

NOT SOLD SEPARAT

9/16" NF Hex.,Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. #2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately) See Ref. #2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. #2

1шт.

17

25803516

(Lantex)

1шт.

17

25803530

PISTON

(Rockford)

1шт.

18

NSS

NOT SOLD SEPARAT

7/8" NF Hex. Nut

1шт.

19

25335101

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

Tie Rod (Lantex)

4шт.

19

25803511

THREADED TIE-ROD

(Rockford)

4шт.

20

25803512

BARREL

(Rockford)

1шт.

20

25803521

BARREL

(Lantex)

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803525

SHAFT

Cylinder Base-3/4" SAE Ports (Lantex)

1шт.

22

25803523

SHAFT

Cylinder Base-3/4" SAE Ports (Rockford)

1шт.

23

NSS

NOT SOLD SEPARAT

1" I.D. SAE Washer

4шт.
