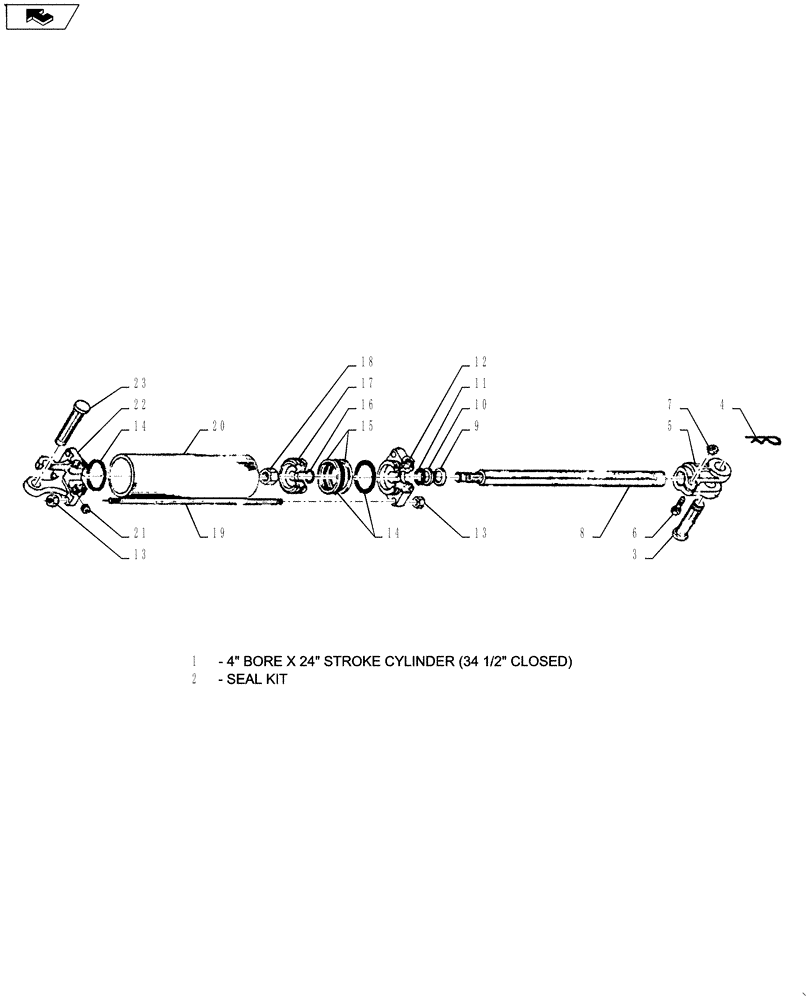

Запчасти Case IH TURBO-TIGER (35.100.06) - HYDRAULIC CYLINDER ASSEMBLY (4" X 24" CYLINDER) (35) - HYDRAULIC SYSTEMS

1

25040241

CYLINDER ASSY.

4" x 24"

1шт.

2

25804030

SEAL PACKAGE

Kit For 4" Cylinder (W/1-1/2" Rod)

1шт.

3

25890100

KIT

1" Cylinder Bag Of Parts

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

4шт.

5

25804031

CLEVIS

Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25804032

PISTON ROD/GLAND

1-1/2" For 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25804033

HEAD

Cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

5/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25804034

PISTON ROD/GLAND

1шт.

18

25804035

NUT

Hex.

1шт.

19

25804036

THREADED TIE-ROD

4шт.

20

25804037

BARREL

For 4" x 24" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25804038

YOKE

Cylinder Base

1шт.

23

25890100

KIT

1" Cylinder Bag Of Parts

1шт.
