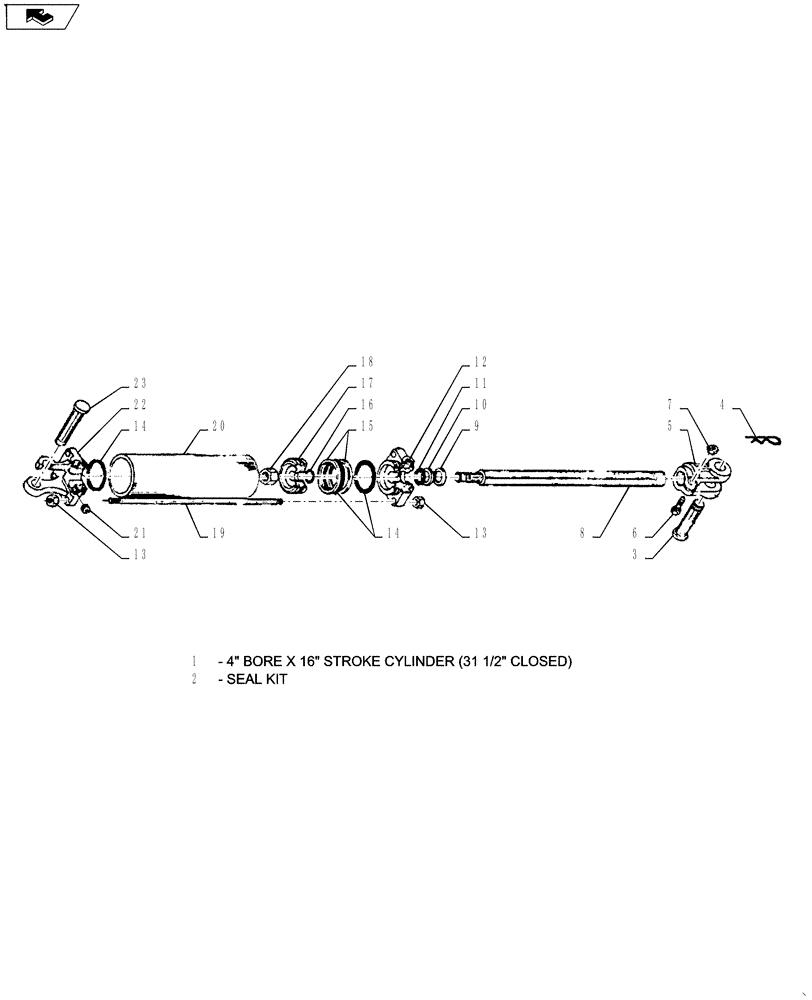

Запчасти Case IH TURBO-TIGER (35.100.05) - HYDRAULIC CYLINDER ASSEMBLY (4" X 16" CYLINDER) (35) - HYDRAULIC SYSTEMS

1

25040160

4" x 16"

1шт.

1

25040162

CYLINDER ASSY.

4" x 16"

1шт.

2

25804001

KIT

Seal For 4" Cylinder

1шт.

2

25804023

SEAL KIT

Kit For 4" Cylinder

1шт.

3

14820221

CLEVIS

1-1/4" x 2-3/4" EL Pin

1шт.

3

14820351

CLEVIS PIN

1-1/4" x 3-1/4"

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

2шт.

5

25804002

SHAFT

Clevis Casting Rod End

1шт.

5

25804020

CLEVIS

Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NH Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25804003

2" Rod For 16"

1шт.

8

25804021

PISTON ROD

1-1/2" For 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25804004

1шт.

12

25804022

HEAD

Cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

5/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25804005

SHAFT

Piston

1шт.

18

14001602

NUT

1" NF Hex.

1шт.

19

25804006

THREADED TIE-ROD

4шт.

20

25804007

Barrel For 4" x 16"

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

22

25804008

1шт.

23

14820241

CLEVIS

1-1/4" x 3" EL Pin

1шт.

23

14820354

1-1/4" X 3-1/4" W/Grease Zerk

1шт.

24

NSS

NOT SOLD SEPARAT

1 1/8" NPT Grease Zerk (Not Shown)

1шт.
