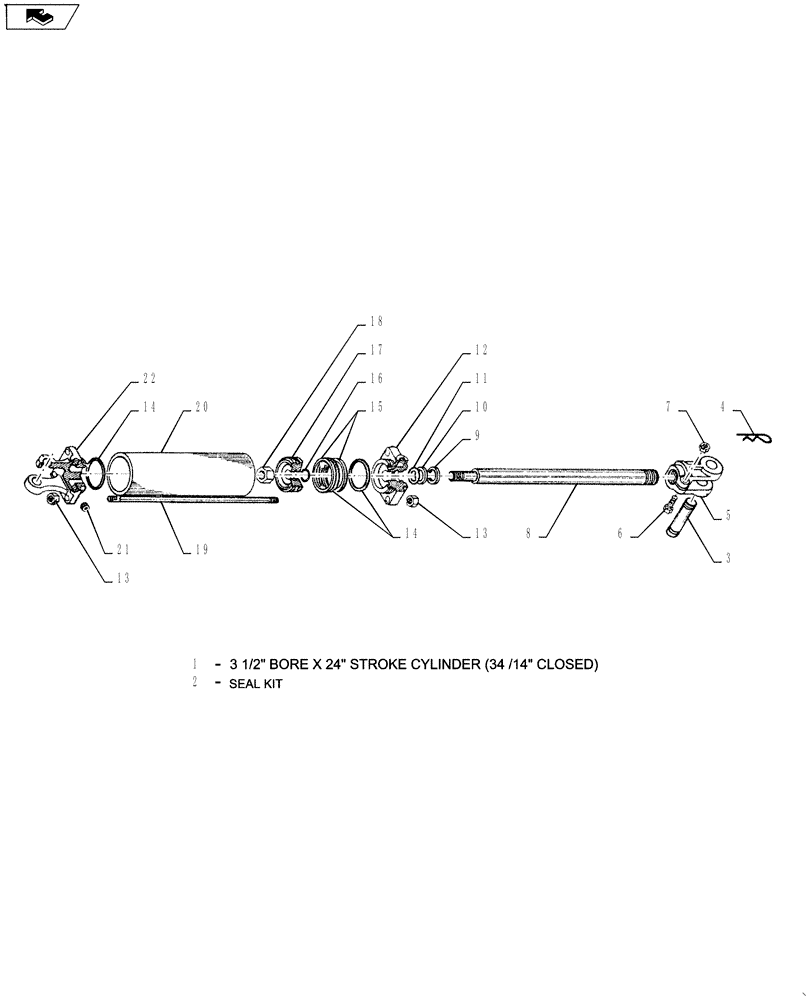

Запчасти Case IH TURBO-TIGER (35.100.04) - HYDRAULIC CYLINDER ASSEMBLY (3 -1/2" X 24" CYLINDER) (35) - HYDRAULIC SYSTEMS

1

25035240

CYLINDER ASSY.

3-1/2" x 24"

1шт.

25335242R

REMAN-HYD CYLINDER

TURBO-TIGER®;Reman For New P/N 25035240

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25803514

KIT

Seal For 3-1/2" Cylinder (W/1-1/2" Rod)

1шт.

3

25890100

KIT

1" Cyl. Bag Of Parts

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

4шт.

5

25803012

CLEVIS

Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25030242

CYLINDER ASSY.

1-1/2" Rod For 24"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25803515

SHAFT

Cylinder Head

1шт.

13

25803021

NUT

Hex.

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25803516

1шт.

18

25803022

NUT

Hex.

1шт.

19

25803016

THREADED TIE-ROD

4шт.

20

25803517

BARREL

For 3-1/2" x 24" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25803518

YOKE

Cylinder Base

1шт.
