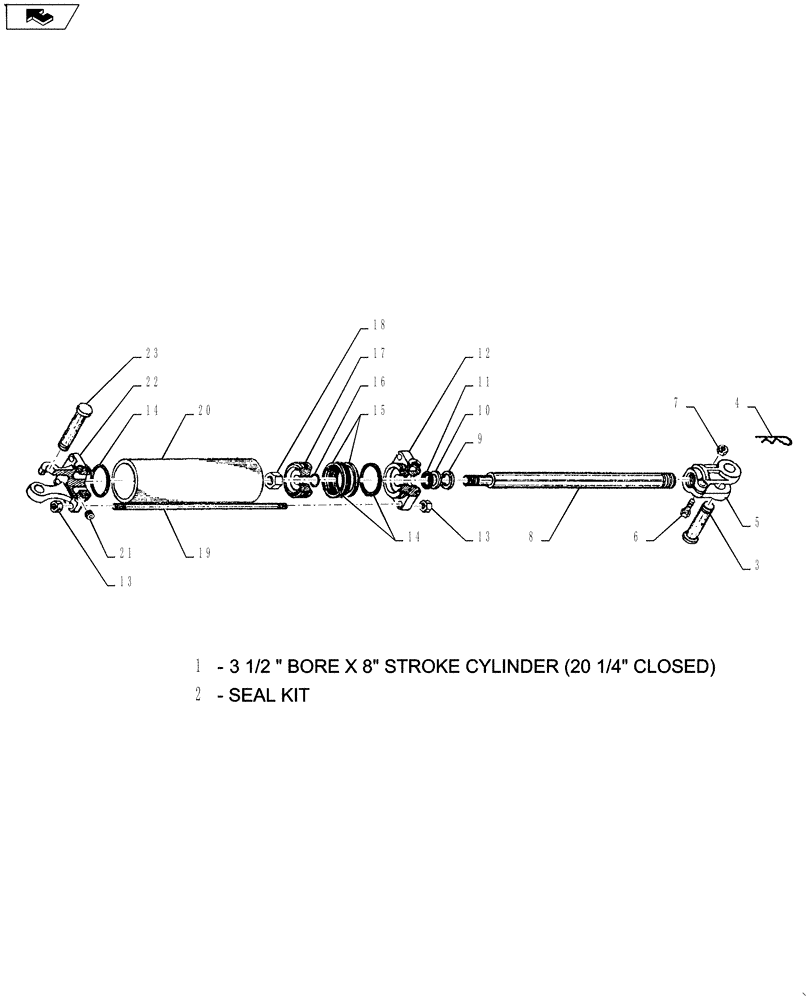

Запчасти Case IH TURBO-TIGER (35.100.03) - HYDRAULIC CYLINDER ASSEMBLY (3 -1/2" X 8" CYLINDER) (35) - HYDRAULIC SYSTEMS

1

25035080

HYDRAULIC CYLINDER

3-1/2" x 8"

1шт.

2

25803507

KIT

Seal For 3-1/2" Cylinder (With 1-1/4" Rod)

1шт.

3

25890100

KIT

1" Cyl. Pin Bag Of Parts

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

2шт.

5

25803001

SHAFT

Clevis Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803506

1-1/4" Rod For 8"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25803501

SHAFT

Cylinder Head

1шт.

13

NSS

NOT SOLD SEPARAT

9/16" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803503

ROD

Tie

4шт.

20

25803504

THREADED TIE-ROD

Barrel For 3-1/2" x 8" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25803505

YOKE

Cylinder Base

1шт.

23

25890100

KIT

1" Cyl. Pin Bag Of Parts

1шт.
