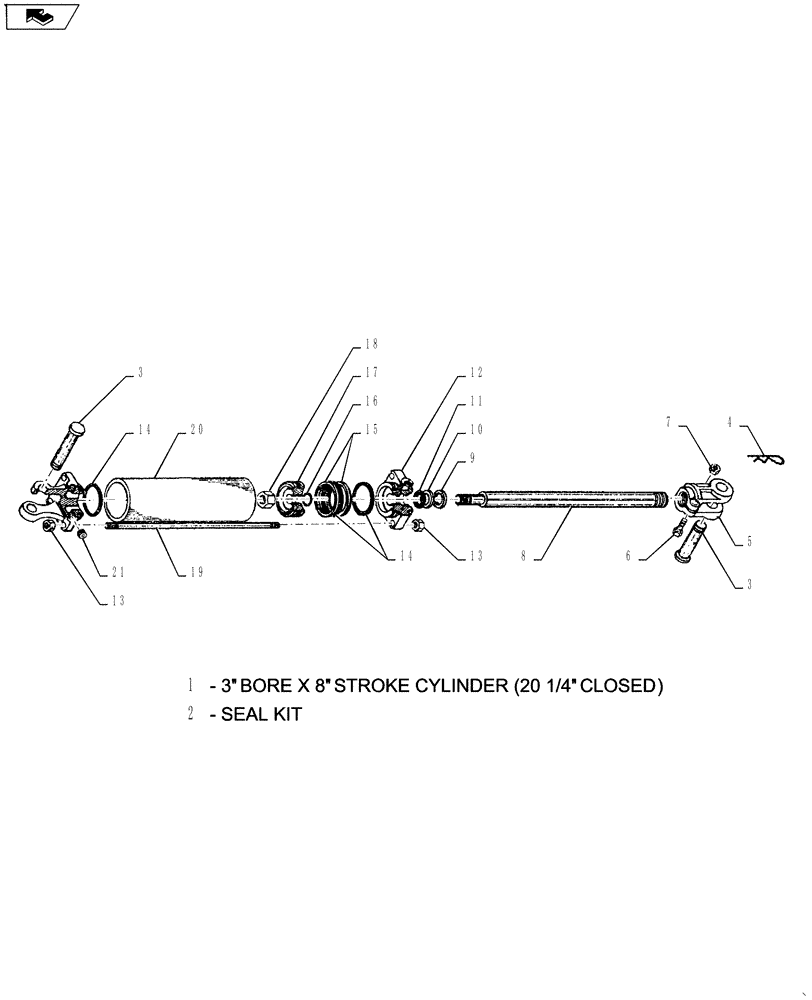

Запчасти Case IH TURBO-TIGER (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (3" X 8" CYLINDER) (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8"

1шт.

2

25803007

KIT

Seal

1шт.

3

25890100

KIT

1" Cyl. Pin Bag Of Parts

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

1шт.

5

25803001

SHAFT

Clevis Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex., Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802503

1-1/4" Rod For 8"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25803002

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803004

THREADED TIE-ROD

4шт.

20

25803005

BARREL

For 3" x 8" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.
