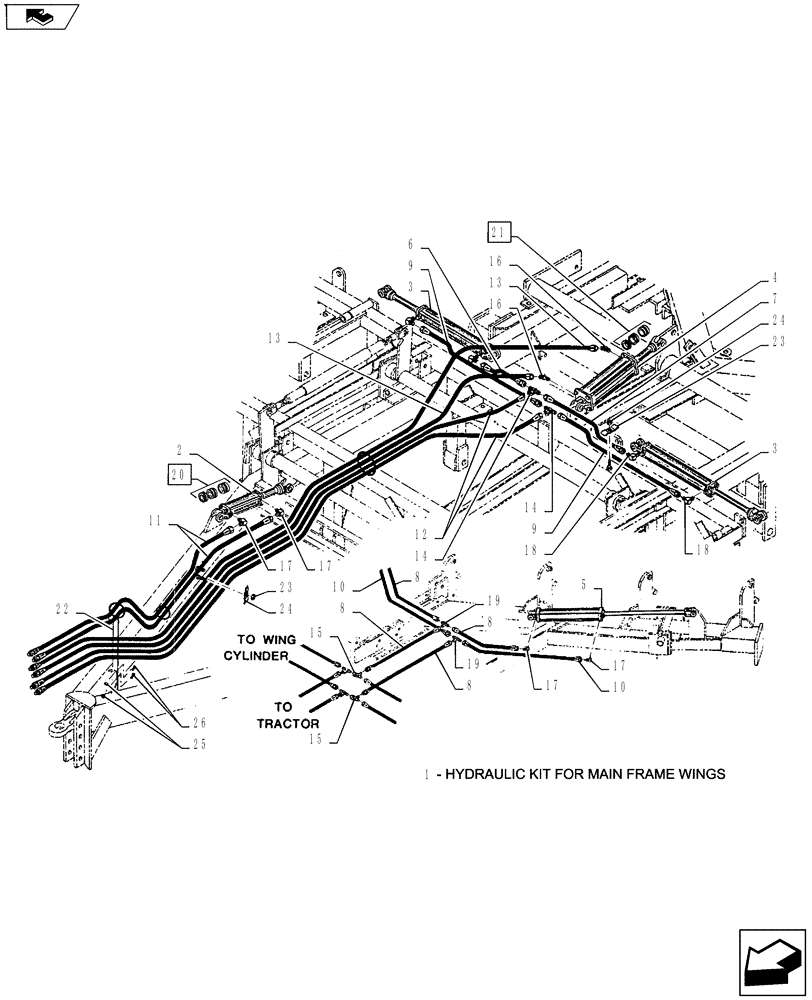

Запчасти Case IH TURBO-TIGER (35.100.01) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

09943000

KIT

Hydraulic For Main Frame Wings

1шт.

1

09915000

KIT

Hydraulic For Disc Frame Wings

1шт.

2

25030081

HYDRAULIC CYLINDER

3" x 8", 20-1/4" Closed

1шт.

2

25035080

HYDRAULIC CYLINDER

3-1/2" , 20-1/4" Closed

1шт.

3

25035240

CYLINDER ASSY.

3-1/2" x 24", 30-1/4" Closed

2шт.

25335242R

REMAN-HYD CYLINDER

TURBO-TIGER®Reman For New P/N 25035240

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

4

25040160

4" x 16", 31-1/2" Closed

1шт.

4

25040162

CYLINDER ASSY.

4" x 16", 26-5/8" Closed

1шт.

4

25050160

5" x 16", 31-1/2" Closed

1шт.

4

25050162

HYDRAULIC CYLINDER

5" x 16", 28-1/4" Closed

1шт.

5

25040241

CYLINDER ASSY.

4" x 24", 34-1/4" Closed

2шт.

6

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

Lg.

1шт.

7

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

Lg.

1шт.

8

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

Lg.

4шт.

9

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

Lg.

2шт.

10

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

Lg.

2шт.

11

25610718

HYDRAULIC HOSE

3/8" x 178" Lg.

2шт.

12

25610721

HOSE ASSY.

3/8" Hyd. x 266" Lg.

2шт.

13

25600895

HOSE

1/2" Hyd. x 300" Lg.

2шт.

14

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

JIC

2шт.

15

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

JIC

2шт.

16

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

NPTM, JICM

2шт.

17

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

NPTM, JICM

6шт.

18

25707514

ELBOW

3/8" NPTM x 3/4" JICM 90

4шт.

19

218-594

TEE,3/4"-16, 37 Degree

JICM

2шт.

20

25800010

CYLINDER

Stroke Control Kit 1-1/4" Rod

1шт.

21

25800020

KIT

Cylinder Stroke Control 2" Rod

2шт.

21

25800030

CYLINDER

Stroke Control Kit 1-1/2" Rod

1шт.

22

04615000

BRACKET

Hose Support

1шт.

23

22530601

HOSE CLAMP

Double

4шт.

24

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

4шт.

25

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

26

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Cap Screw

2шт.
