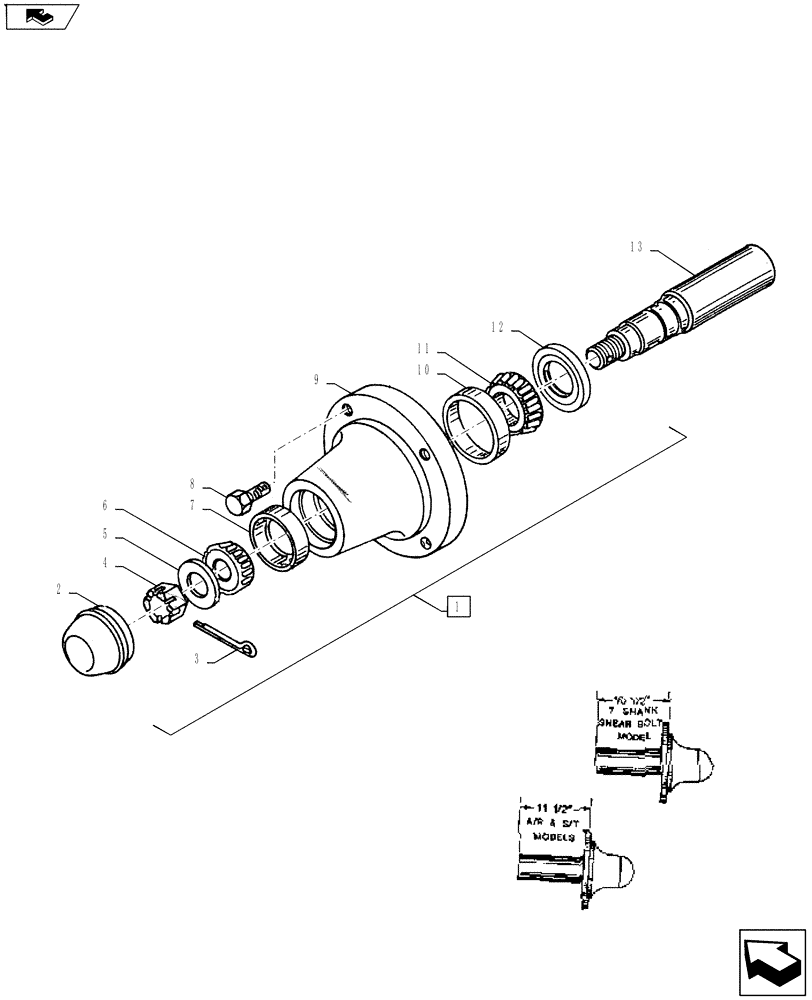

Запчасти Case IH TURBO-TIGER (44.100.04) - Q-821 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28182100

4WD AXLE ASSY

Q-821 8-Bolt Hub, Includes Ref. 2-12

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

B32159

EXCITER

1.31 Bore Cone Timken 2790

1шт.

7

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00 OD Timken 2720

1шт.

8

16409083

BOLT

9/16" -18 UNF Wheel

8шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

21883670

CUP

3.67 OD Timken 3720

1шт.

11

21872000

BEARING, CONE

2.00 Bore Timken 3780

1шт.

12

820095C91

SEAL

2.50 ID x 3.75 OD CR 375W216-MI

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle (10-1/2")

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle (11-1/2")

1шт.

14

28082121

HUB

Spindle Assy., (10-1/2"), Includes Ref. 1-13

1шт.

14

28082123

HUB ASSY.

Spindle, Includes Ref. 1-13

1шт.
